| Electrical | |
|---|---|
| average input power max (W) | 300 |
| bandwidth (MHz) | 36 |
| connector | 7/16 DIN-Female |
| electrical tilt available | 0,2,4,6, or 8 degrees |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 7.5 |
| horizontal beamwidth typ | 210 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

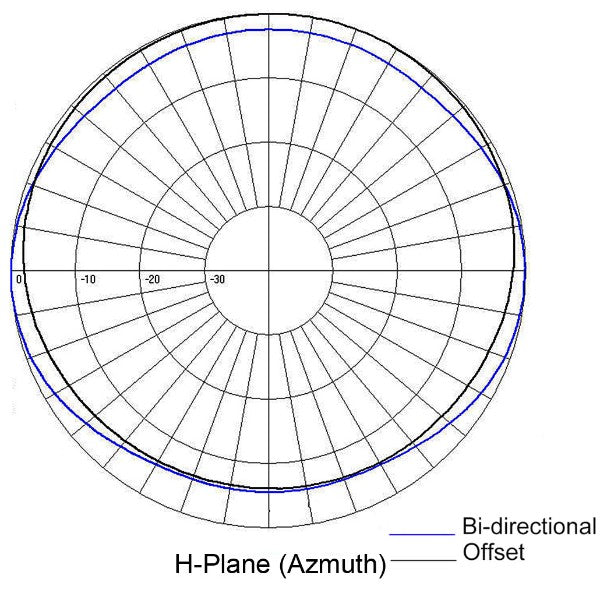

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 85 |
| base pipe diameter | 2.38 |
| base pipe material | aluminum |
| depth (in) | 3.5 |
| length height (in) | 240 |

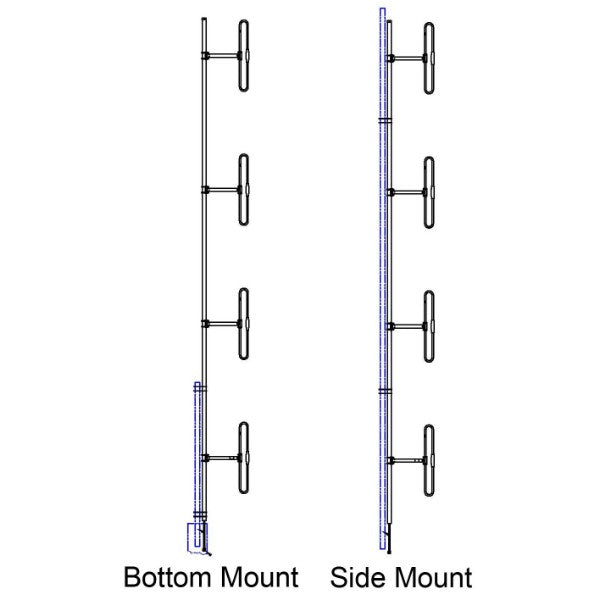

| mounting configurations | Universal Mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 247x44x6.5 |
| Width (in) | 23 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 919 |
| lateral thrust 100 mph no ice | 158 |
| rated wind velocity no ice | 125 |
| temperature range (°C) | -40 to 60 |
SD214-SF2P4LDF(D00)-Spec-Sheet.pdf
