Collinear omni, 3 dBd, 2 MHz B.W., N(m), 138-174 MHz
Collinear omni, 3 dBd, 2 MHz B.W., N(m), 138-174 MHz
Collinear omni, 3 dBd, 2 MHz B.W., N(m), 138-174 MHz
Collinear omni, 3 dBd, 2 MHz B.W., N(m), 138-174 MHz

SC233-SFXSNM(FXXXX)

Collinear omni, 3 dBd, 2 MHz B.W., N(m), 138-174 MHz

$0.00
/
Seulement 0 articles en stock !
• Antenne à faible coût
• Bande passante de 2 MHz. La fréquence doit être spécifiée au moment de la commande
• Conçu pour résister aux exigences sévères du service maritime
• Excellente couverture de l'horizon
• Bande passante de 2 MHz
Electrical
average input power max (W) 100
bandwidth (MHz) 2
connector N-Male
frequency range (MHz) 138 to 174
gain nominal (dBd) 3
impedance (Ω) 50
lightning protection DC ground

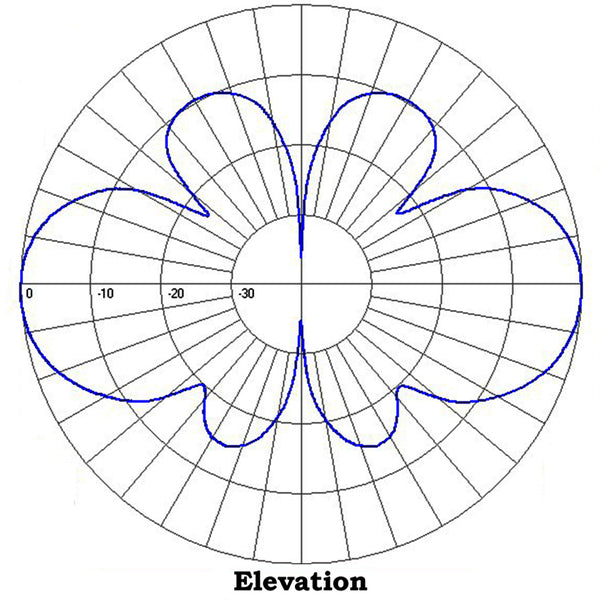

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 25
base pipe diameter 0.88
base pipe material aluminum alloy
base pipe mounting length 14
depth (in) 1.5
length (in) 145
mounting configurations upright
mounting hardware included Clamp135
radiating element material brass
radome material fiberglass (UV protected)
shipping dimensions (in) 157x4x4
Width (in) 1.5
Environmental
bending moment 100 mph no ice 66
lateral thrust 100 mph no ice 21
rated radial ice 0.5
rated wind velocity no ice 115
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 2
