4 dipole, 6 dBd omni/ 9 dBd offset, field adj, N-Male, 152-162 MHz
4 dipole, 6 dBd omni/ 9 dBd offset, field adj, N-Male, 152-162 MHz

SD224-SF5PASNM

4 dipole, 6 dBd omni/ 9 dBd offset, field adj, N-Male, 152-162 MHz

Regular price $0.00
/

Only 0 items in stock!
• 6 dBd in omni-directional configuration, 9 dBd in offset configuration
• 10 MHz bandwidth, covering 152-162 MHz
• Easy to install light structural design
• For Omni pattern bottom mount; For Offset pattern side mount
Electrical
average input power max 300
bandwidth 10
connector N-Male
frequency range 152 to 162
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

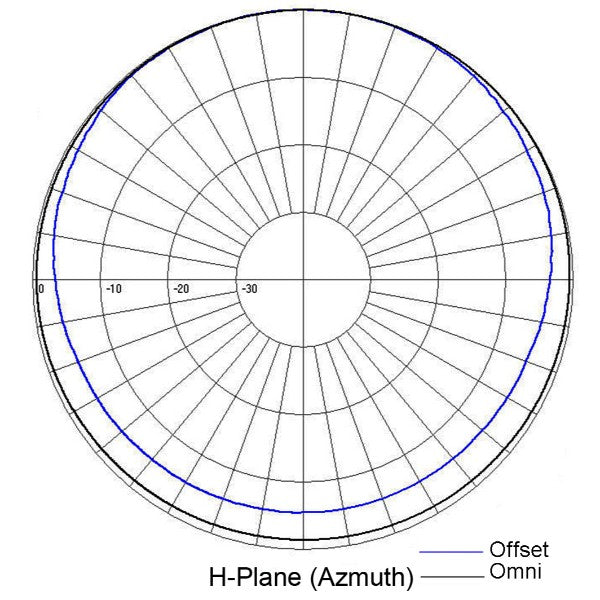

pattern Omni or Offset, Adjustable
polarization vertical
vertical beamwidth typ 16
Mechanical
actual shipping weight 55
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 36
depth 4.5
length height 216
mounting configurations Universal Mount
mounting hardware included Clamp130
radiating element material aluminum
shipping dimensions 120x24x6
width 14
Environmental
bending moment 100 mph no ice 539
lateral thrust 100 mph no ice 116
rated wind velocity no ice 105
temperature range -40 to 60
