4 dipole, 7.0 dBd, bi-directional, low PIM, 138-174 MHz
4 dipole, 7.0 dBd, bi-directional, low PIM, 138-174 MHz

SD214-SF2P2LDF(D00)

4 dipole, 7.0 dBd, bi-directional, low PIM, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
4-bay dipole antenna with industry-leading -150dBc PIM rating 7 dBd gain with bi-directional pattern 300W power handling Can be top or side mounted (Universal Mount)
Performance Features
low pim certified Yes
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole Yes
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
actual shipping weight 85
base pipe diameter 2.38
base pipe material aluminum
depth 3.5
length height 240

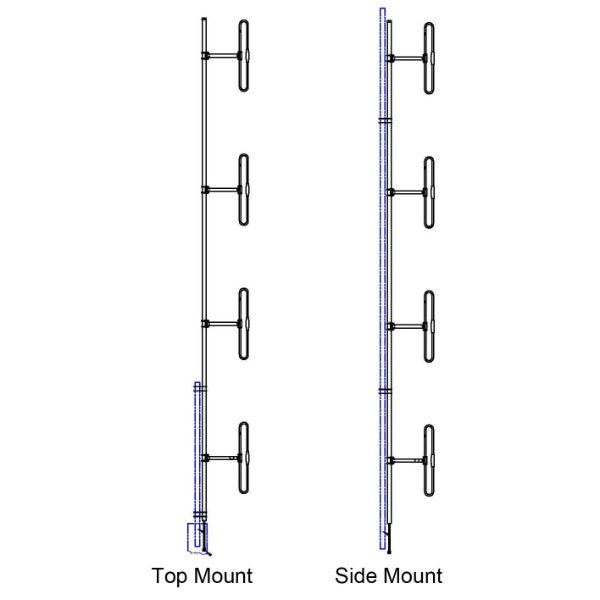

mounting configurations Universal Mount
mounting hardware optional Clamp130
radiating element material aluminum
shipping dimensions 247x44x6
width 42
Electrical
average input power max 300
bandwidth 36
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6, or 8 degrees
frequency range 138 to 174
gain nominal 7
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

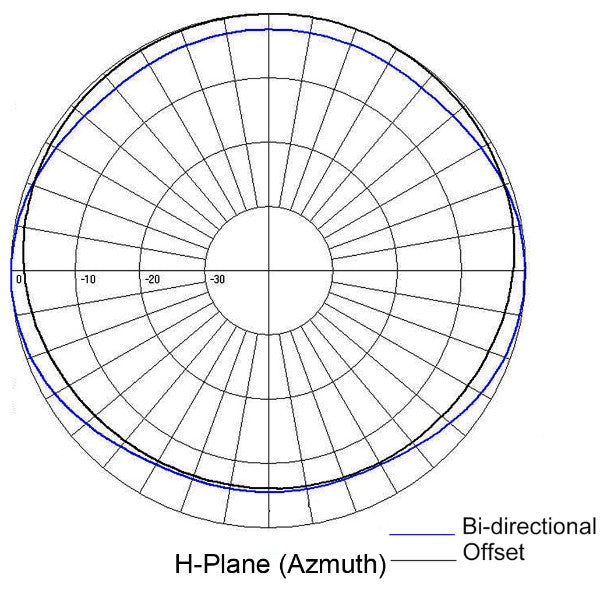

pattern Bi-directional
polarization vertical
vertical beamwidth typ 18
