| Electrical | |
|---|---|
| average input power max (W) | 100 |
| bandwidth (MHz) | 2 |
| connector | N-Female |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 3 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

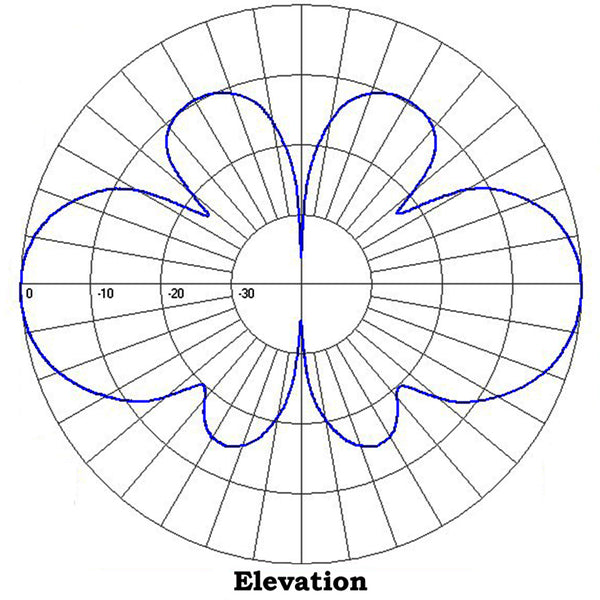

| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 25 |
| base pipe diameter | 0.88 |
| base pipe material | aluminum alloy |
| base pipe mounting length | 14 |
| depth (in) | 1.5 |
| length (in) | 145 |
| mounting configurations | upright |
| mounting hardware included | Clamp135 |
| radiating element material | brass |
| radome material | fiberglass (UV protected) |
| shipping dimensions (in) | 157x4x4 |
| Width (in) | 1.5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 66 |
| lateral thrust 100 mph no ice | 21 |
| rated radial ice | 0.5 |
| rated wind velocity no ice | 115 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 2 |
SC233-SFXSNF(FXXXX)-Spec-Sheet.pdf
