| Electrical | |
|---|---|
| average input power max (W) | 500 |
| connector | N-Female |
| electrical tilt available | 0,2,4, or 6 degrees |
| frequency range (MHz) | 890 to 940 |
| gain nominal (dBd) | 9 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

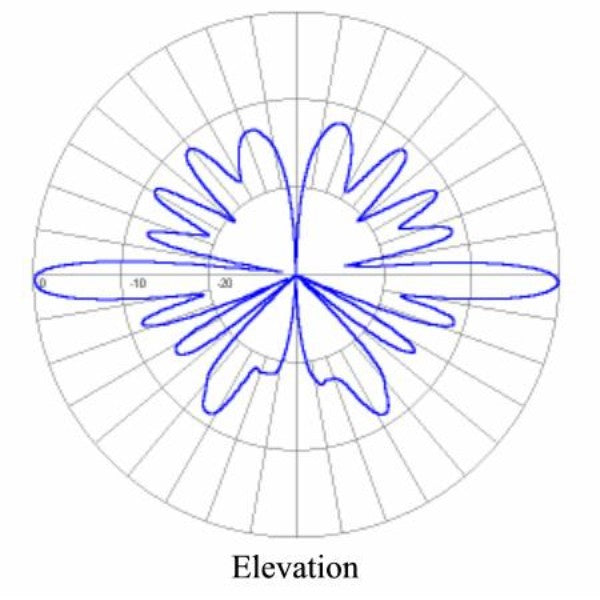

| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 60 |
| base pipe diameter | 2.5 |
| base pipe material | aluminum |
| base pipe mounting length | 15 |
| depth (in) | 2.5 |
| length (in) | 150 |
| mounting configurations | upright |
| mounting hardware included | Clamp130 |
| radiating element material | copper |
| radome material | fiberglass (UV protected) |
| shipping dimensions (in) | 223x4x4 |
| Width (in) | 2.5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 283.1 |
| lateral thrust 100 mph no ice | 60.6 |
| rated wind velocity no ice | 150 |
| temperature range (°C) | -40 to 60 |
SC489-SF3LNF(D02)-Spec-Sheet.pdf
