Collinear omni, 9 dBd, upright or inverted, 928-960 MHz
Collinear omni, 9 dBd, upright or inverted, 928-960 MHz

SC489-SF4LNF(D00)

Collinear omni, 9 dBd, upright or inverted, 928-960 MHz

Regular price $0.00
/

Only 0 items in stock!
• Electrical downtilt available in 2, 4 & 6 degrees
• Compact, light weight fiberglass radome with UV protection
• Units with no downtilt can be mounted both inverted and upright
Electrical
average input power max 500
connector N-Female
electrical tilt available 0,2,4, or 6 degrees
frequency range 928 to 960
gain nominal 9
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

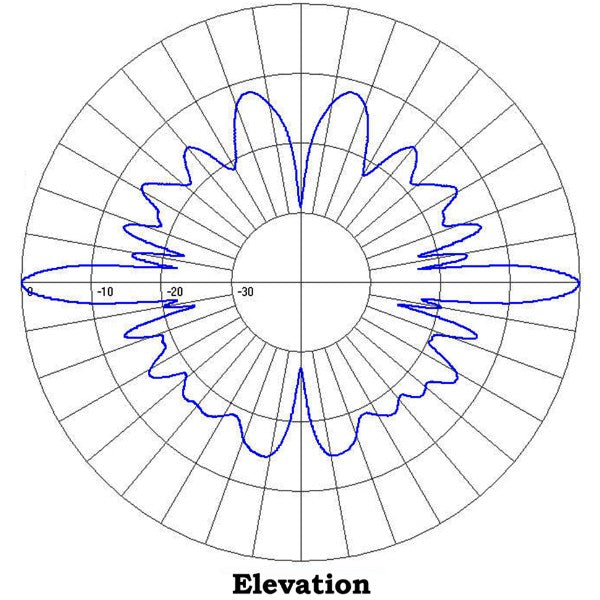

pattern Omni-directional
polarization vertical
vertical beamwidth typ 6
Mechanical
actual shipping weight 60
base pipe diameter 2.5
base pipe material aluminum
base pipe mounting length 20
depth 2.5
length 132
mounting configurations upright, inverted
mounting hardware included Clamp130
radiating element material copper
radome material fiberglass (UV protected)
shipping dimensions 223x4x4
width 2.5
Environmental
bending moment 100 mph no ice 190
lateral thrust 100 mph no ice 52.4
rated wind velocity no ice 170
temperature range -40 to 60
