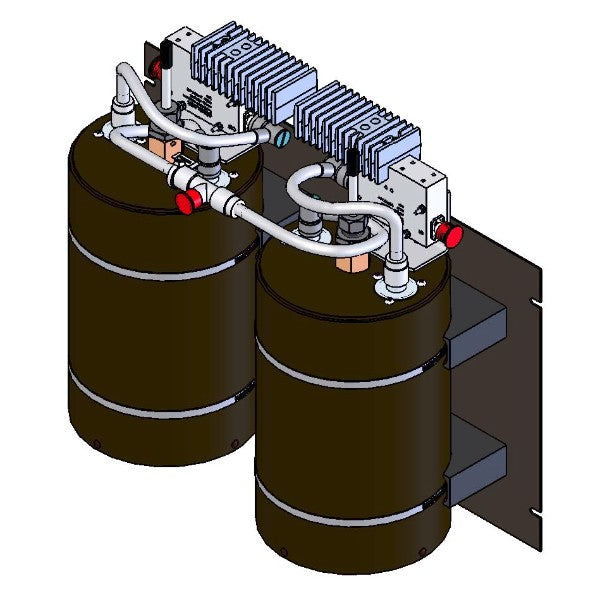

Combiner, 2 CH, 7" cavities, 406-440 MHz
Combiner, 2 CH, 7" cavities, 406-440 MHz

TJ3212-R-3

Combiner, 2 CH, 7" cavities, 406-440 MHz

Regular price $0.00
/

Only 0 items in stock!
• Low loss broad band dual stage isolators
• Allows for minimum Tx-Tx spacings of 200 KHz
• Expandable for more channels
• Uses high Q 1/4 wave bandpass cavity filters
• Panel mount
Electrical
cavity electrical length 04-Jan
frequency range 406 to 440
impedance 50
input connectors N-Female
input vswr max 1.25 : 1
insertion loss typ tx to ant 3.2
isolation antenna to tx 50
isolation tx to tx 60
number of channels 2
output connectors N-Female
output vswr 2:01
Mechanical
actual shipping weight 28
depth 7
length height 15.3
mounting configurations 19 inch rack
shipping dimensions 21x9.5x34
width 19
Environmental
temperature range -30 to 60
