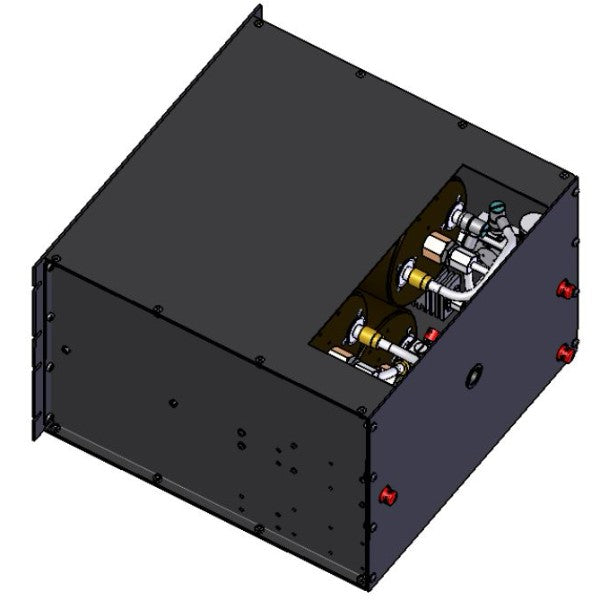

Combiner, 3 CH, 7" cavities, 806-960 MHz
Combiner, 3 CH, 7" cavities, 806-960 MHz

TJ4133

Combiner, 3 CH, 7" cavities, 806-960 MHz

Regular price $0.00
/

Only 0 items in stock!
• Allows for minimum Tx-Tx spacings of 250 KHz
• Expandable for more channels
• High Q bandpass cavity filters with low loss single stage isolators
• Enclosed cabinet
Electrical
frequency range 806 to 960
impedance 50
input connectors N-Female
input vswr max 1.25 : 1
isolation antenna to tx 25
isolation tx to tx 35
number of channels 3
output connectors N-Female
output vswr 2:01
power per channel 125
Mechanical
actual shipping weight 45
depth 18.5
length height 12.25
mounting configurations 19 inch rack
shipping dimensions 23x23x18
width 19
Environmental
temperature range -30 to 60
