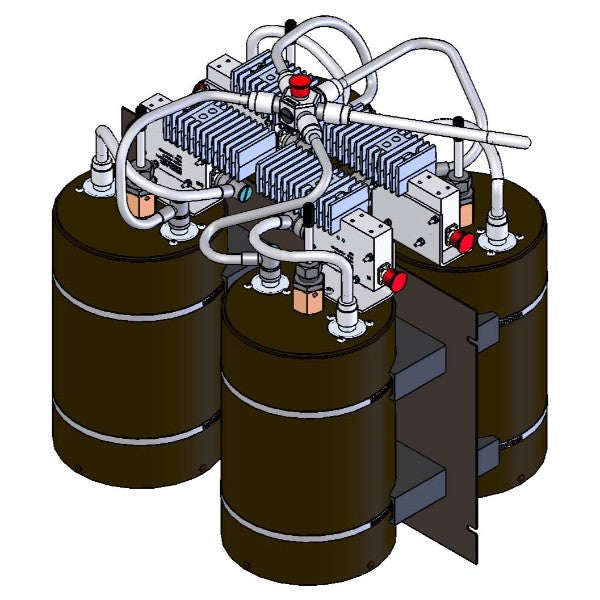

Combiner, 4 CH, 7" cavities, 406-440 MHz
Combiner, 4 CH, 7" cavities, 406-440 MHz

TJ3214-R-3

Combiner, 4 CH, 7" cavities, 406-440 MHz

Regular price $0.00
/

Only 0 items in stock!
• Low loss broad band dual stage isolators
• Allows for minimum Tx-Tx spacings of 200 KHz
• Expandable for more channels
• Uses high Q 1/4 wave bandpass cavity filters
• Panel mount
Electrical
cavity electrical length 04-Jan
frequency range (MHz) 406 to 440
impedance (Ω) 50
input connectors N-Female
insertion loss typ tx to ant 3.6
isolation antenna to tx 50
isolation tx to tx 60
number of channels 4
output connectors N-Female
output vswr 2:01
Mechanical
actual shipping weight (lbs) 53
depth (in) 14.8
length height (in) 15.3
mounting configurations 19 inch rack
shipping dimensions (in) 20x16x21
Width (in) 19
Environmental
temperature range (°C) -30 to 60
