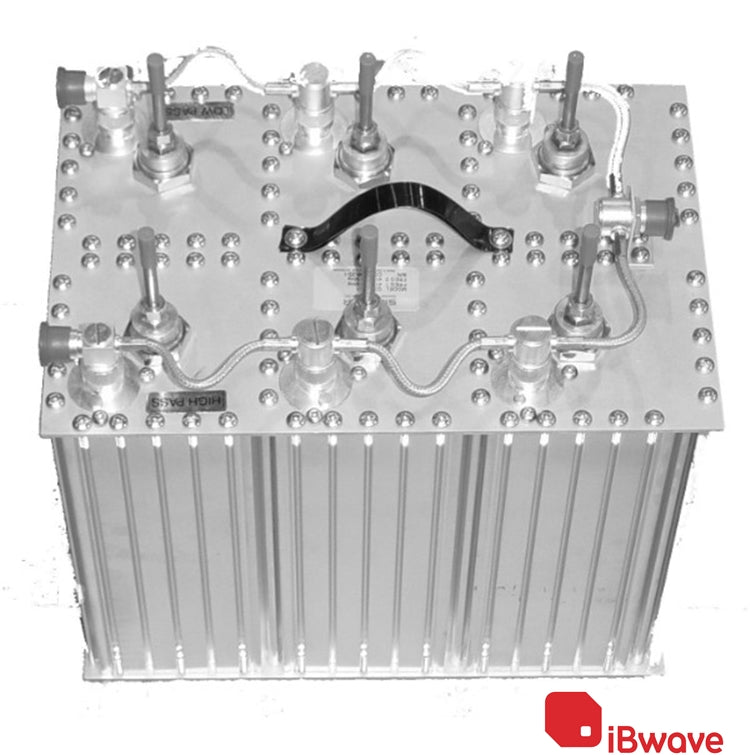

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 380-400 MHz
Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 380-400 MHz

Q3330E-6

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 380-400 MHz

Regular price $0.00
/

Only 0 items in stock!
• Six-cavity Res-Lok duplexer design Provide 1 MHz passband
• Frequency separation is 5 MHz band center to band center

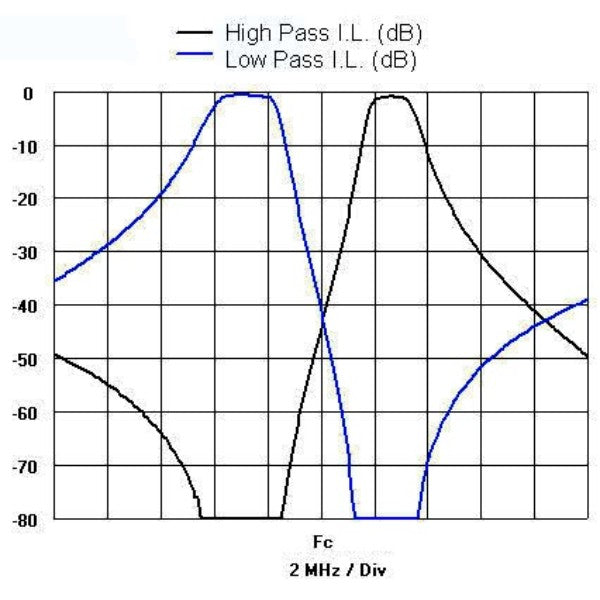

• Typical minimum isolation is 85 dB with typical insertion loss of 1.3 dB
Electrical
average input power max (W) 350
connectors N-Female
frequency range (MHz) 380 to 400
impedance (Ω) 50
insertion loss max rx to ant 1.3
insertion loss max tx to ant 1.3
isolation (min) (dB) 85
Mechanical
actual shipping weight (lbs) 25
depth (in) 11.38
finish chromate conversion
length height (in) 8.3
mounting configurations 19 inch rack
shipping dimensions (in) 11x15x24
Width (in) 19
Environmental
temperature range (°C) -40 to 60
