Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 406-420 MHz
Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 406-420 MHz

Q3330E-1

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 406-420 MHz

Regular price $0.00
/

Only 0 items in stock!

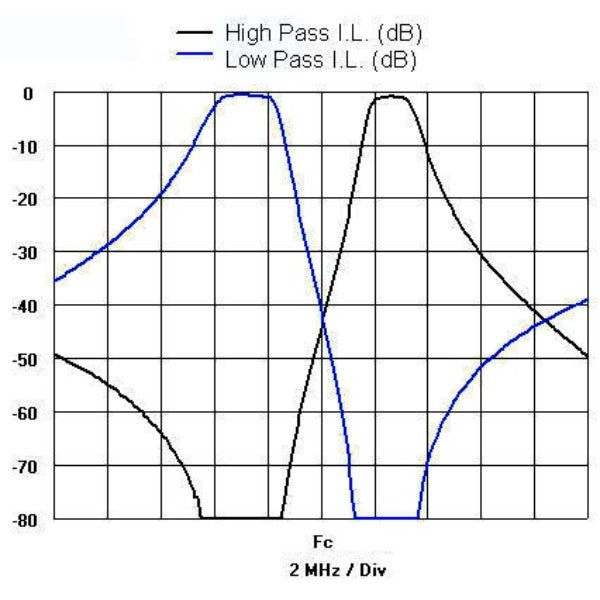

• Six-cavity Res-Lok duplexer design Provide 1 MHz passband and reject notch where frequency separation is 5 Mhz Typical minimum isolation is 85 dB with maximum insertion loss of 1.3 dB

Electrical
average input power max 350
connectors N-Female
frequency range 406 to 420
impedance 50
input vswr max 1.5 : 1
insertion loss max rx to ant 1.3
insertion loss max tx to ant 1.3
isolation min 85
Mechanical
actual shipping weight 25
depth 11.38
finish chromate conversion
length height 8.3
mounting configurations 19 inch rack
shipping dimensions 11x15x24
width 19
Environmental
temperature range -40 to 60
