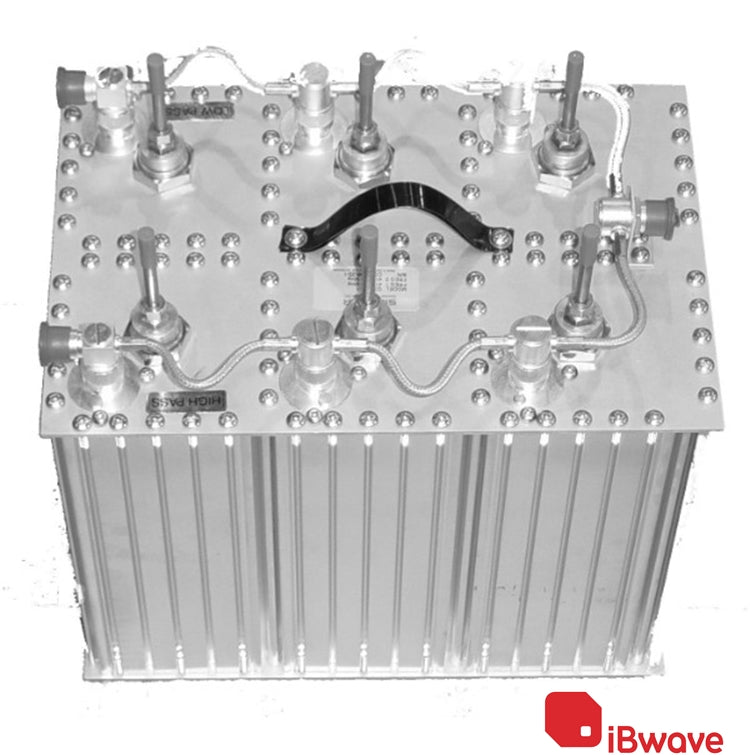

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 420-450 MHz
Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 420-450 MHz

Q3330E-2

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 420-450 MHz

Regular price $0.00
/

Only 0 items in stock!
• Six-cavity Res-Lok duplexer design

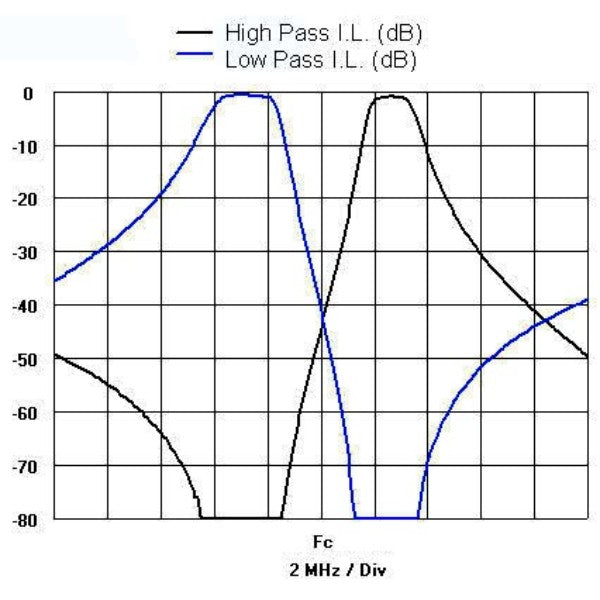

Provide 1 MHz pass-band and reject notch where frequency separation is 5 MHz
Typical minimum isolation is 85 dB with maximum insertion loss of 1.3 dB
Electrical
average input power max (W) 350
connectors N-Female
frequency range (MHz) 420 to 450
impedance (Ω) 50
insertion loss max rx to ant 1.3
insertion loss max tx to ant 1.3
isolation (min) (dB) 85
Mechanical
actual shipping weight (lbs) 25
depth (in) 11.38
finish chromate conversion
length height (in) 8.3
mounting configurations 19 inch rack
shipping dimensions (in) 11x15x24
Width (in) 19
Environmental
temperature range (°C) -40 to 60
