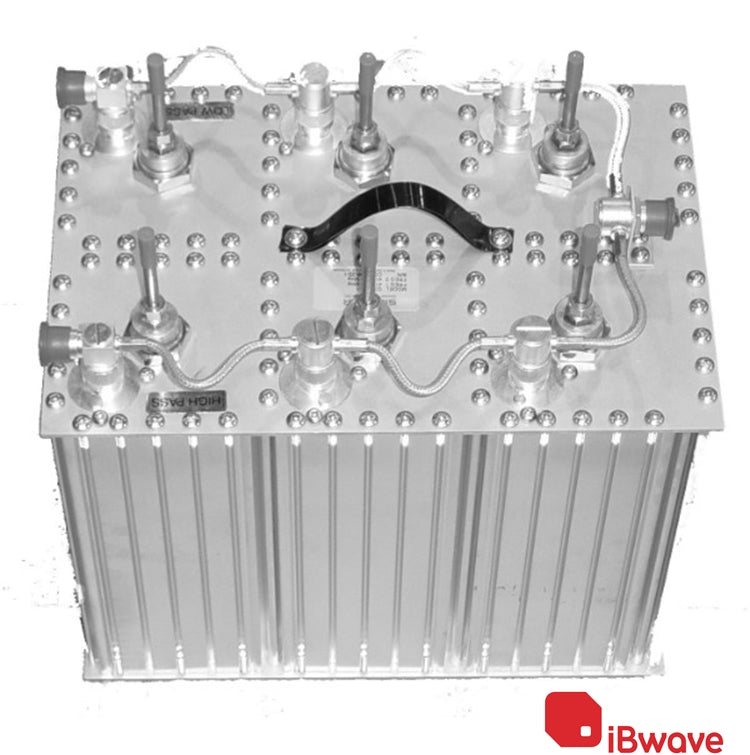

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 500-512 MHz
Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 500-512 MHz

Q3330E-5

Duplexer, Q-Circuit, Res-Lok, 6 cavity, rack mount, 500-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• Six-cavity Res-Lok duplexer design

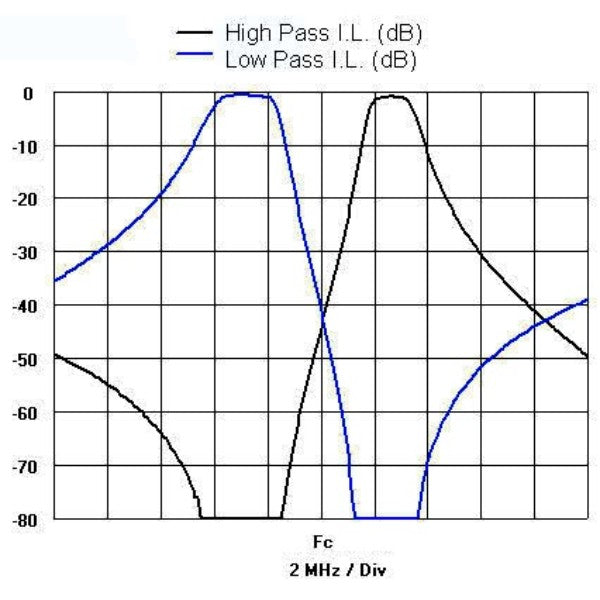

• Provide 1 MHz passband and reject notch where frequency separation is 5 MHz
• Typical minimum isolation is 85 dB with maximum insertion loss of 1.3 dB
Electrical
average input power max (W) 350
connectors N-Female
frequency range (MHz) 500 to 512
impedance (Ω) 50
insertion loss max rx to ant 1.3
insertion loss max tx to ant 1.3
isolation (min) (dB) 85
Mechanical
actual shipping weight (lbs) 25
depth (in) 11.38
finish chromate conversion
length height (in) 8.3
mounting configurations 19 inch rack
shipping dimensions (in) 11x15x24
Width (in) 19
Environmental
temperature range (°C) -40 to 60
