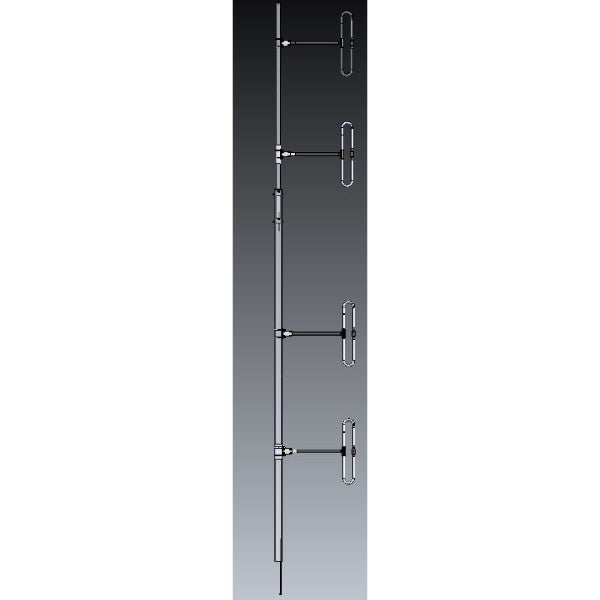

Exposed dipole, 5.5 dBd, dual, offset, HD, 138-174 MHz
Exposed dipole, 5.5 dBd, dual, offset, HD, 138-174 MHz

SD212D-HF2P4SNM(D00B)

Exposed dipole, 5.5 dBd, dual, offset, HD, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• 5.5 dBd gain with offset pattern
• Perfectly suited for multicoupler systems
• 30 dB port-to-port isolation
• Heavy duty, top mount
Electrical
average input power max 300
connector N-Male
frequency range 138 to 174
gain nominal 5
impedance 50
input vswr max 1.5 : 1
isolation port to port typ 30
lightning protection DC ground
pattern Offset
polarization vertical
vertical beamwidth typ 34
Mechanical
actual shipping weight 136
base pipe diameter 4
base pipe material aluminum
base pipe mounting length 48
depth 5
length height 228
mounting configurations top mount
mounting hardware optional Clamp006C
radiating element material aluminum
shipping dimensions 232x48x6
width 29
Environmental
bending moment 100 mph no ice 1131
lateral thrust 100 mph no ice 230
rated wind velocity no ice 205
temperature range -40 to 60
