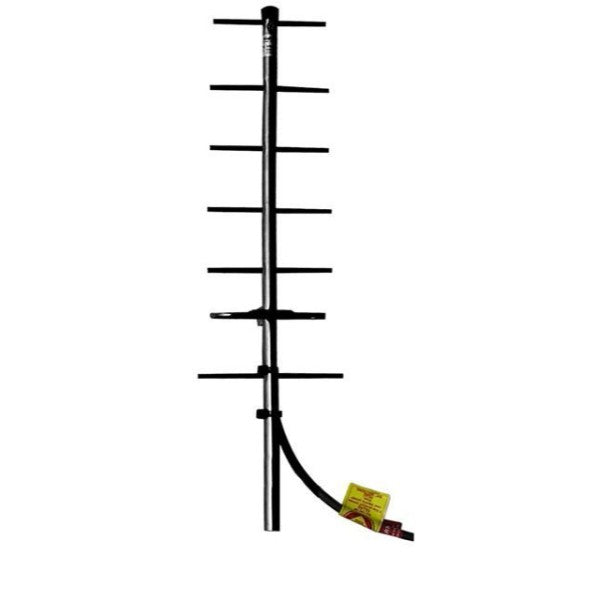

Yagi Ant, 10 dBd, black anodized, 824-896 MHz
Yagi Ant, 10 dBd, black anodized, 824-896 MHz

SY406-SF2SNM(ABK)

Yagi Ant, 10 dBd, black anodized, 824-896 MHz

Regular price $0.00
/

Only 0 items in stock!
• Anodized high-grade aluminum.
• 360 degree welded elements, completely sealed dipole for durability in harsh environments.
• 10dBd gain with low VSWR in very compact size.
Electrical
average input power max (W) 125
bandwidth (MHz) 72
connector N-Male
frequency range (MHz) 824 to 896
front to back ratio typ 20
gain nominal (dBi) 10

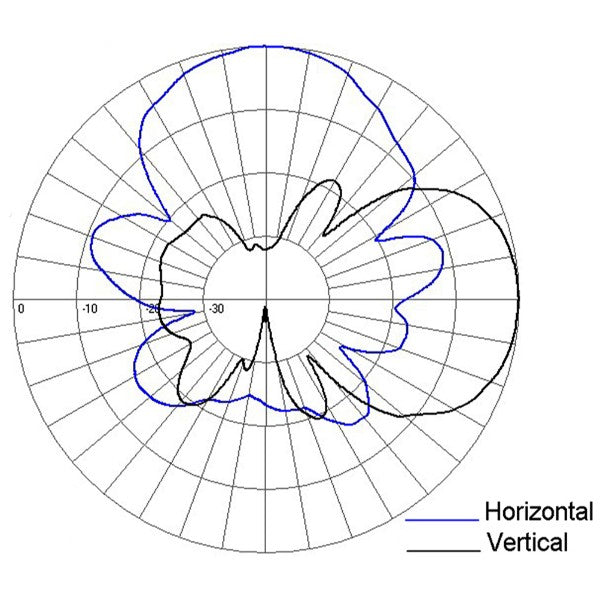

horizontal beamwidth typ 52
impedance (Ω) 50
lightning protection DC ground
pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 5
depth (in) 2.63
finish anodize black
length height (in) 24
mounting hardware included Clamp115
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 43x8.4x3.2
Width (in) 7.08
Environmental
bending moment 100 mph no ice 5.26
lateral thrust 100 mph no ice 7
rated radial ice 0.5
rated wind velocity no ice 150
temperature range (°C) -40 to 60
