1 dipole, 1.5 dBd, low PIM, bi-directional, 138-174 MHz
1 dipole, 1.5 dBd, low PIM, bi-directional, 138-174 MHz

SD210-SF2P2LDF

1 dipole, 1.5 dBd, low PIM, bi-directional, 138-174 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• 1-bay dipole antenna with -150dBc PIM rating
• Covers 138-174 MHz
• 1.5 dBd gain with bi-directional pattern
• Can be top or side mount (universal mount)
Electrical
average input power max (W) 300
bandwidth (MHz) 36
connector 7/16 DIN-Female
frequency range (MHz) 138 to 174
gain nominal (dBd) 1.5
impedance (Ω) 50
lightning protection DC ground

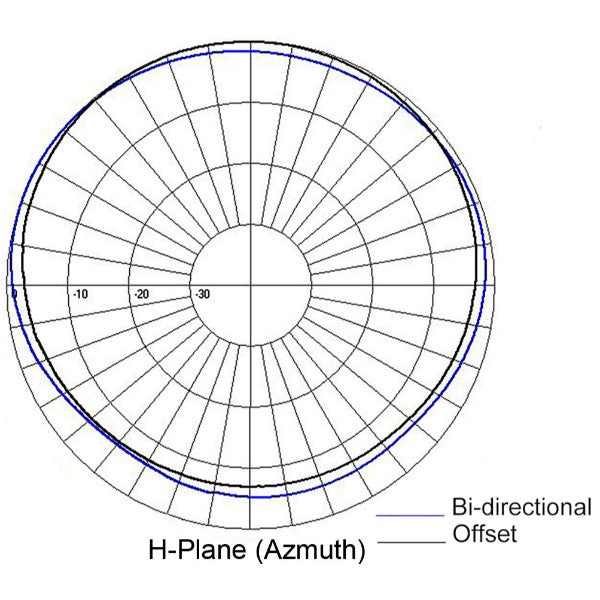

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 31.3
base pipe diameter 1.9
base pipe material aluminum
depth (in) 3.5
length height (in) 60
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 62.4x44.4x3.6
Width (in) 42
Environmental
bending moment 100 mph no ice 76.3
lateral thrust 100 mph no ice 60.8
rated wind velocity no ice 175
survival wind velocity no ice 228
temperature range (°C) -40 to 60
