SM701 Series

Compact Multi-band Transport Antenna, 694-6000MHz & GNSS

$0.00
/
Nur 0 Artikel auf Lager!
  • Flexible Configurations: available in cellular-only, cellular + GPS, and GNSS + dual-band Wi-Fi configurations
  • Broad Multi-band Coverage: supports cellular bands across 694–960, 1710–2700, 3400–4200, 4400–5000, and 5150–6000 MHz, depending on model
  • Low-profile, Rugged Design: UV-stabilized housing designed for demanding mobile and transport applications
  • Versatile Installation: no external ground plane required; suitable for metallic and non-metallic mounting surfaces
  • Simple, Sealed Mounting: installs through a single 3/4 in mounting hole and provides IP67 protection after proper installation
Electrical
connector Various options avail.
frequency range (MHz) 694 to 6000
gps power gain typ 28
impedance (Ω) 50
lightning protection DC ground
pattern Omni- directional
Mechanical
height (in) 2.6
ingress protection IP67
overall diameter (in) 6.3

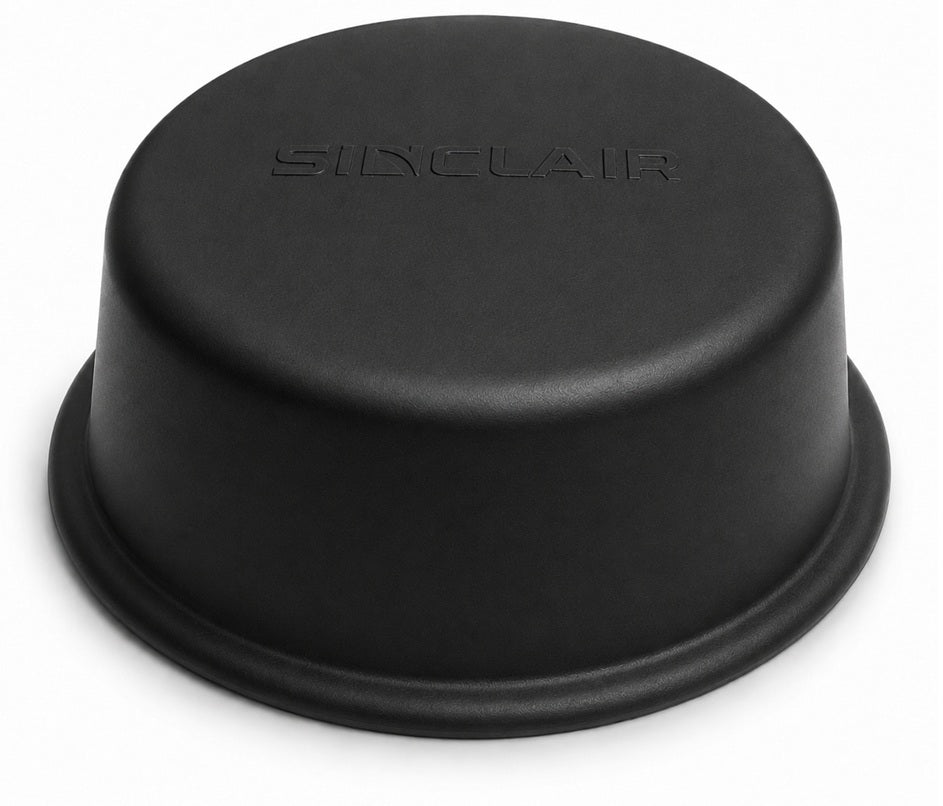

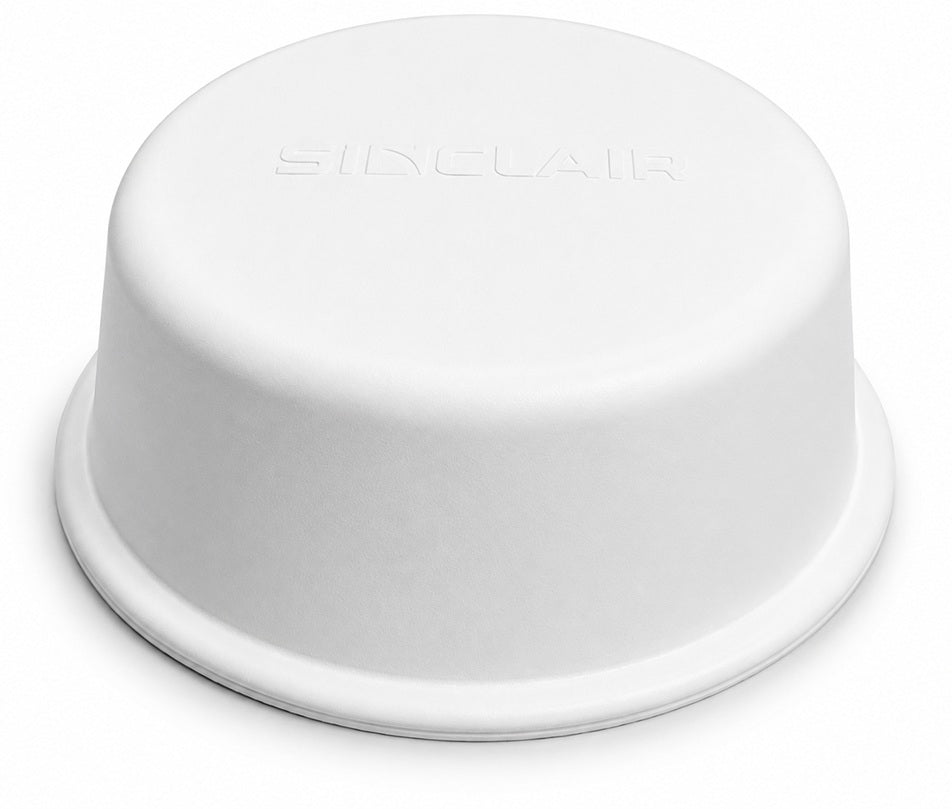

radome color White or Black
Environmental
temperature range (°C) -40 to 60
