| Electrical | |
|---|---|
| average input power max (W) | 300 |
| bandwidth (MHz) | 20 |
| connector | N-Male |
| electrical tilt available | 0,2,4,6,8, or 10 degrees |
| frequency range (MHz) | 118 to 138 |
| gain nominal (dBd) | 5 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

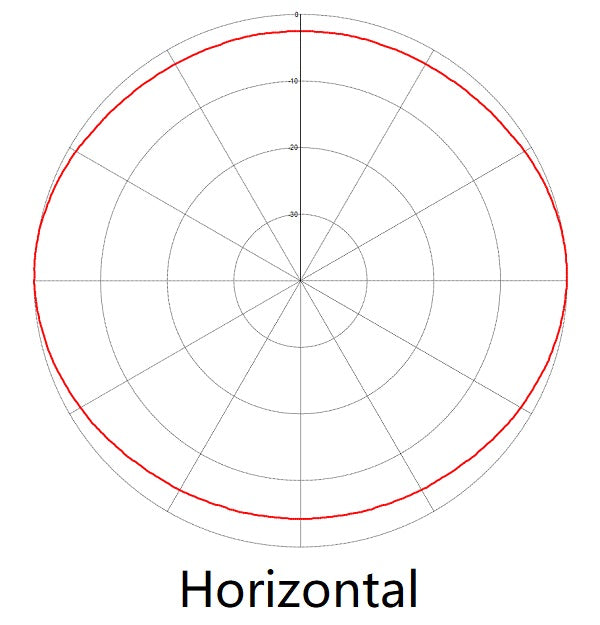

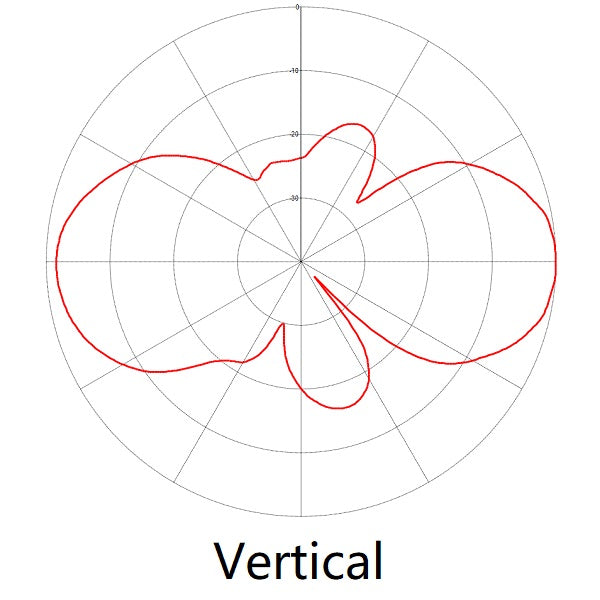

| pattern | Bi- directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 51 |
| base pipe diameter | 1.9 |
| base pipe material | aluminum |
| base pipe mounting length | 45 |
| depth (in) | 3 |
| length height (in) | 144 |
| mounting configurations | Universal Mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 148x48x6 |
| Width (in) | 46.75 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 288 |
| lateral thrust 100 mph no ice | 96 |
| rated wind velocity no ice | 140 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 1.52 |
SD212-SF1P2SNM(D00)-Spec-Sheet.pdf
