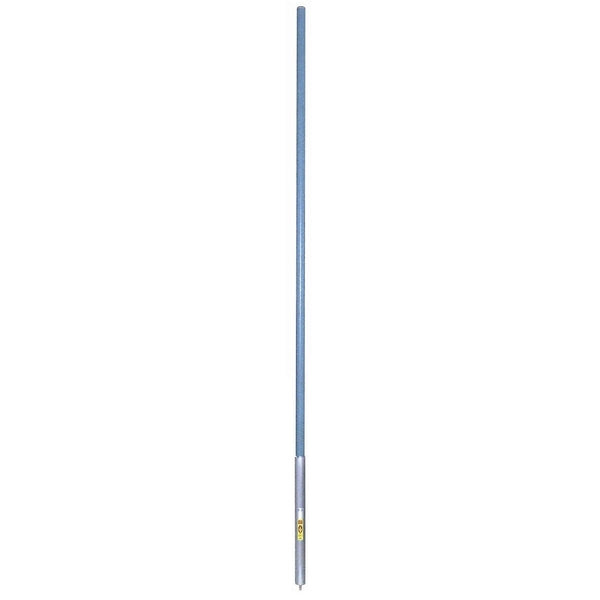

SC246 SERIES

Aurora collinear omni, 6 dBd, 8 MHz B.W., low PIM, 136-225 MHz (Successor of SC226 and SC229 series)

正常价格 $0.00
/

只有 0 件商品有库存!

• Patent-pending Aurora design for stable pattern Rugged design and UV protected radome for harsh environment High gain, omni-directional, 8 MHz bandwidth with max VSWR of 1.5:1 -150 dBc PIM rating for low noise characteristics in trunking system

Electrical
average input power max (W) 500
bandwidth (MHz) 8
frequency range (MHz) 136 to 225
gain nominal (dBd) 6
horizontal beamwidth typ 360
impedance (Ω) 50
lightning protection DC ground
number of ports 1

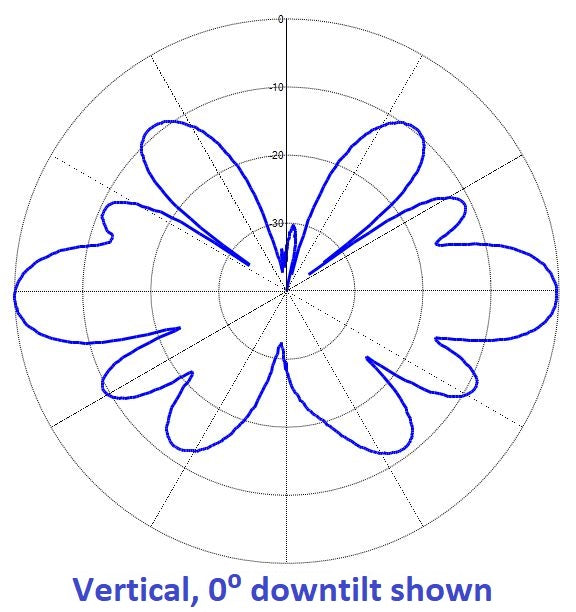

pattern Omni- directional
polarization vertical
Mechanical
actual shipping weight (lbs) 78
base pipe diameter 2.88
depth (in) 2.88
length height (in) 257
mounting configurations upright
radome material fiberglass (UV protected)
shipping dimensions (in) 267x4.5x4.5
Width (in) 2.88
Environmental
bending moment 100 mph no ice 984
lateral thrust 100 mph no ice 110
rated wind velocity no ice 130
temperature range (°C) -40 to +60
tip deflection 100 mph no ice 7.8
