| Electrical | |
|---|---|
| average input power max (W) | 250 |
| connector | N-Female |
| DC Ground | Yes |
| frequency range (MHz) | 137 to 174 |
| gain, nominal (dBd) | 3 |
| impedance (Ω) | 50 |

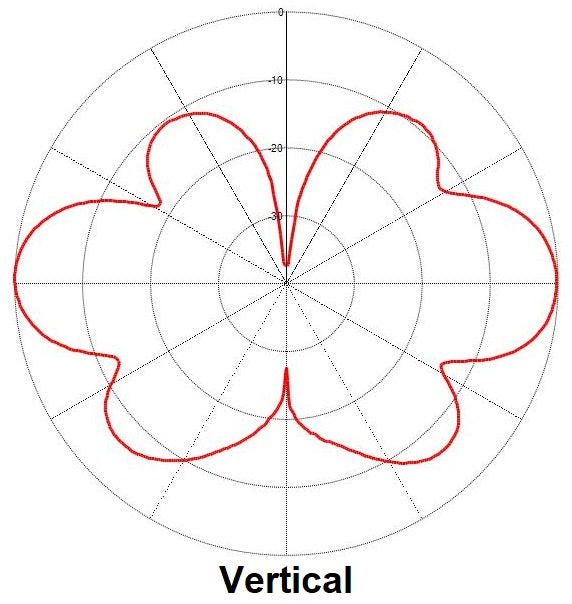

| pattern | Omni-directional |
| polarization | Vertical |
| vertical beamwidth typ (degrees) | 30 |
| Mechanical | |
|---|---|
| depth (in) | 1.9 |
| mounting configurations | Upright |
| mounting hardware | 2 x U-bolt & Nut (included) |
| radome material | Fiberglass (UV protected) |
| width (in) | 3.5 |
| Environmental | |
|---|---|
| temperature range (°C) | -45 to +60 |
