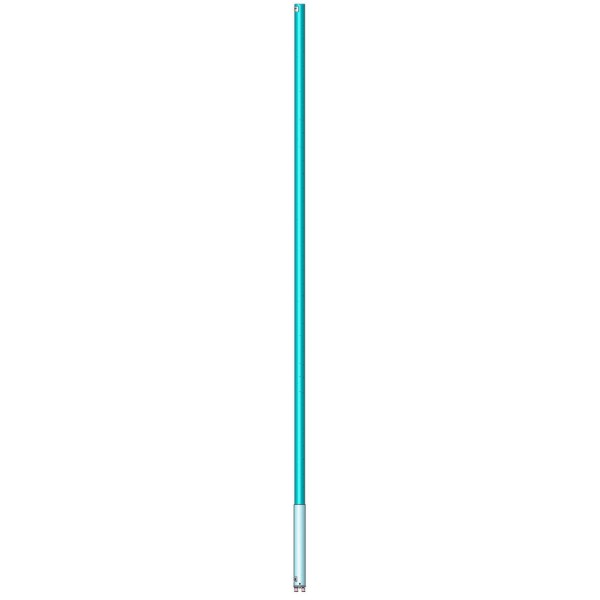

Collinear omni, 6.5 dBd, dual ports, low PIM, PIP rated, 746-869 MHz
Collinear omni, 6.5 dBd, dual ports, low PIM, PIP rated, 746-869 MHz

SC466D-HF1LDF(DXX-I40-PIP)

Collinear omni, 6.5 dBd, dual ports, low PIM, PIP rated, 746-869 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Aurora dual collinear antennas with 6.5 dBd gain and PIP rated
• 1.5:1 VSWR to provide excellent coverage
• Designed to operate in extreme environmental conditions.
• Provides 40 dB port-to-port isolation.
Electrical
average input power max (W) 500
bandwidth (MHz) 123
connector 7/16 DIN-Female
frequency range (MHz) 746 to 869
gain nominal (dBd) 6.5
impedance (Ω) 50
isolation port to port (dB) 40
lightning protection DC ground
number of ports 2

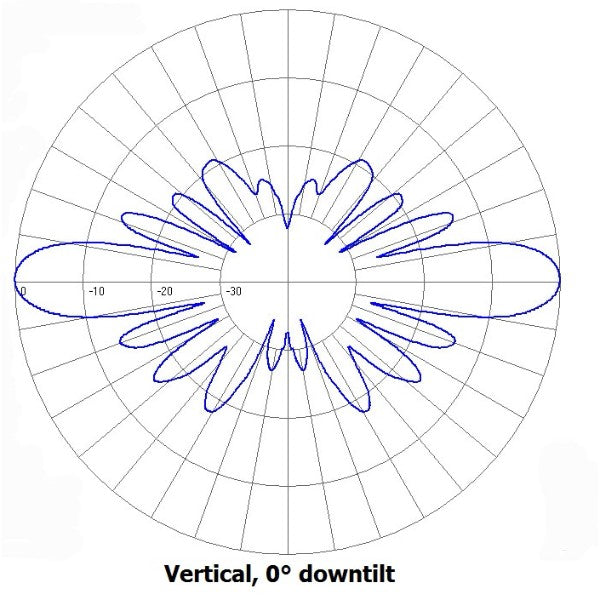

pattern Omni-directional
polarization vertical
vswr max 1.5:1
Mechanical
actual shipping weight (lbs) 76
base pipe diameter 3.5
base pipe material aluminum
base pipe mounting length 16
depth (in) 3.5
length height (in) 175
mounting configurations upright
radiating element material PCB + aluminum
radome material fiberglass
shipping dimensions (in) 190x6x6
Width (in) 3.5
Environmental
bending moment 100 mph no ice 562
lateral thrust 100 mph no ice 99
rated wind velocity no ice 190
temperature range (°C) -40 to +60
tip deflection 100 mph no ice 1.6
