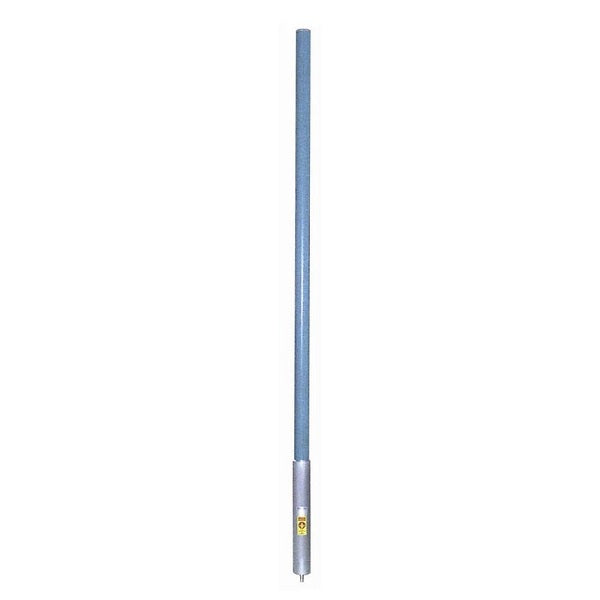

Collinear omni, 9 dBd, low PIM, HD, 806-869 MHz (Successor of SC489-SF1 antenna)
Collinear omni, 9 dBd, low PIM, HD, 806-869 MHz (Successor of SC489-SF1 antenna)

SC459-SF1LNF(D00)

Collinear omni, 9 dBd, low PIM, HD, 806-869 MHz (Successor of SC489-SF1 antenna)

正常价格 $0.00
/

库存只有 0 件商品!
• Patent-pending design covers the 806-869 MHz frequency range -138 dBc PIM rating for low noise characteristics, ideal for trunking systems
• Rugged design for harsh environment
Electrical
average input power max (W) 500
bandwidth (MHz) 63
connector N-Female
frequency range (MHz) 806-869
gain nominal (dBd) 9
impedance (Ω) 50
lightning protection DC ground

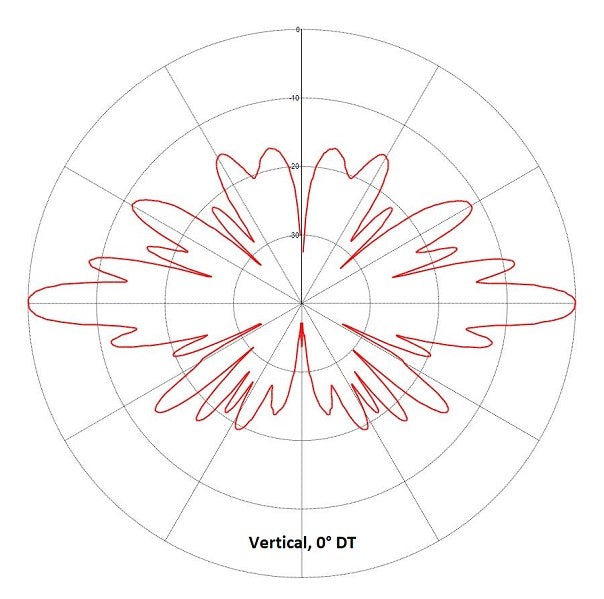

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 29
base pipe diameter 2.5
base pipe mounting length 12
depth (in) 2.5
length height (in) 123
mounting configurations upright
radome color Blue
radome material fiberglass
shipping dimensions (in) 133x4.5x4.5
Width (in) 2.5
Environmental
rated wind velocity no ice 130
temperature range (°C) -40 to +60
