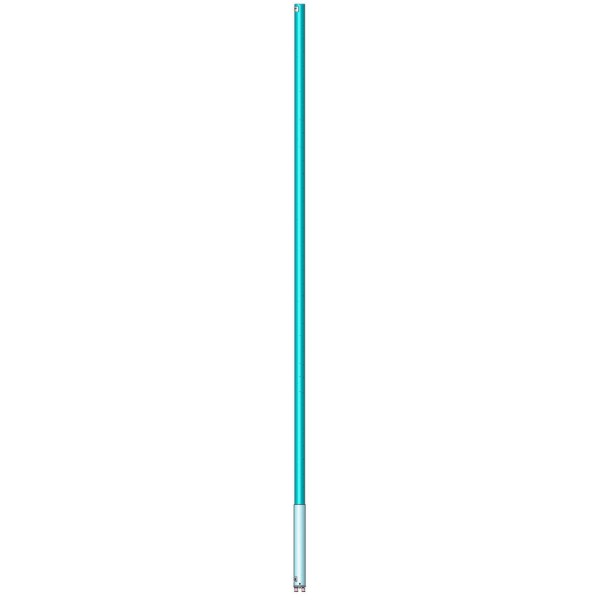

Dual Omni Ant, 6 dBd, low PIM, PIP, Iso.40 dB, HD, 806-960 MHz
Dual Omni Ant, 6 dBd, low PIM, PIP, Iso.40 dB, HD, 806-960 MHz

SC432D-HF2LDF(D0-I40-G6-E5749)

Dual Omni Ant, 6 dBd, low PIM, PIP, Iso.40 dB, HD, 806-960 MHz

正常价格 $0.00
/

只有 0 件商品有库存!
• Dual collinear antennas with typical 6 dBd gain
• 1.5:1 VSWR to provide excellent coverage
• Designed to operate in extreme environmental conditions.
• Provides 40 dB port-to-port isolation, low PIM, PIP rated
Electrical
average input power max (W) 500
connector 7/16 DIN-Female
electrical tilt available 0-10 degrees in 1? increments
frequency range (MHz) 806 to 960
gain nominal (dBd) 6
impedance (Ω) 50
lightning protection DC ground
number of ports 2

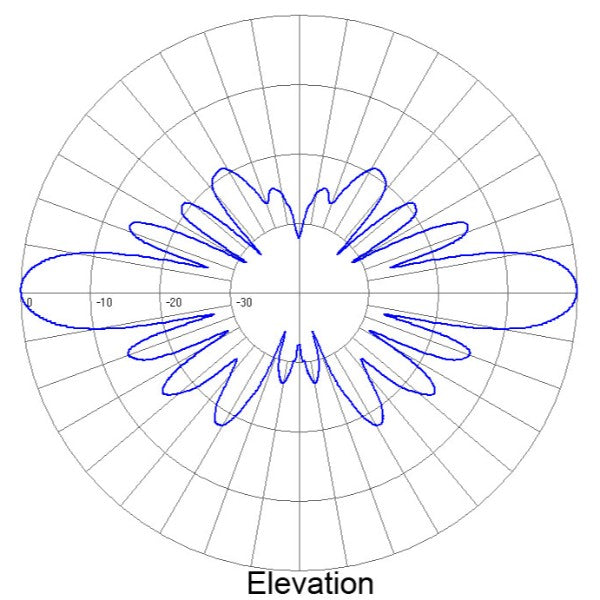

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 75
base pipe diameter 3.5
base pipe material aluminum
base pipe mounting length 24
depth (in) 3.5
length height (in) 163
mounting configurations upright
radiating element material copper
radome material fiberglass (UV protected)
shipping dimensions (in) 186x6x6
Width (in) 3.5
Environmental
bending moment 100 mph no ice 517
lateral thrust 100 mph no ice 95
rated wind velocity no ice 180
survival wind velocity no ice 215
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 1.5
