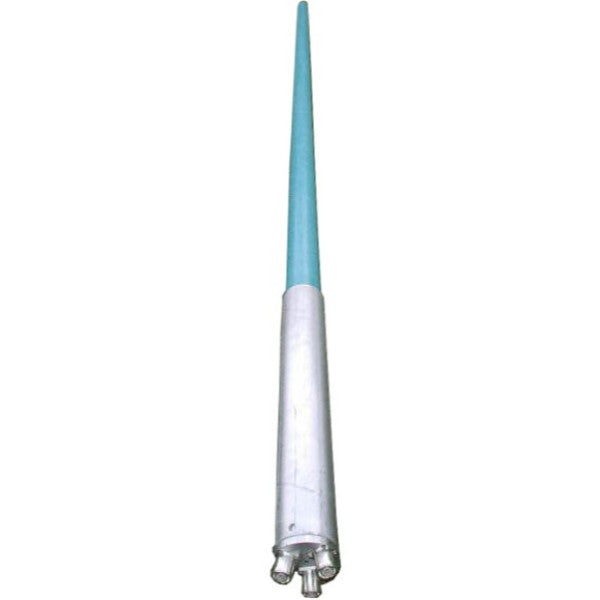

Triple omni Ant, 6 dBd, low PIM, PIP rated, 746-869 MHz
Triple omni Ant, 6 dBd, low PIM, PIP rated, 746-869 MHz

SC432T-SF6LDF(D0-I30-G6-E5749)

Triple omni Ant, 6 dBd, low PIM, PIP rated, 746-869 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Triple port collinear antenna with 30 dB port-to-port isolation with 6 dBd gain.
• Designed to operate in extreme environmental conditions.
• Low PIM and PIP rated
Electrical
average input power max (W) 500
connector 7/16 DIN-Female
electrical tilt available 0,2,4, or 6 degrees
frequency range (MHz) 746 to 869
gain nominal (dBd) 6
impedance (Ω) 50
lightning protection DC ground
pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 92
base pipe diameter 3.5
base pipe material aluminum
base pipe mounting length 30
depth (in) 3.5
length height (in) 214.5
mounting configurations upright
radiating element material brass
radome material fiberglass (UV protected)
shipping dimensions (in) 252x6x6
Width (in) 3.5
Environmental
bending moment 100 mph no ice 983
lateral thrust 100 mph no ice 132
rated wind velocity no ice 140
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 4.2
