2 dipole, dual port, 5.5 dBd, offset, 138-174 MHz
2 dipole, dual port, 5.5 dBd, offset, 138-174 MHz

SD212D-SF2P4SNM(D00)

2 dipole, dual port, 5.5 dBd, offset, 138-174 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Dual array with 2 separate feed cables
• 5.5 dBd gain with offset pattern
• Can be top or side mounted (Universal Mount)
• Perfectly suited for multicoupled systems.
Electrical
average input power max (W) 300
connector N-Male
frequency range (MHz) 138 to 174
front to back ratio typ 6.5
gain nominal (dBd) 5.5
horizontal beamwidth typ 210
lightning protection DC ground

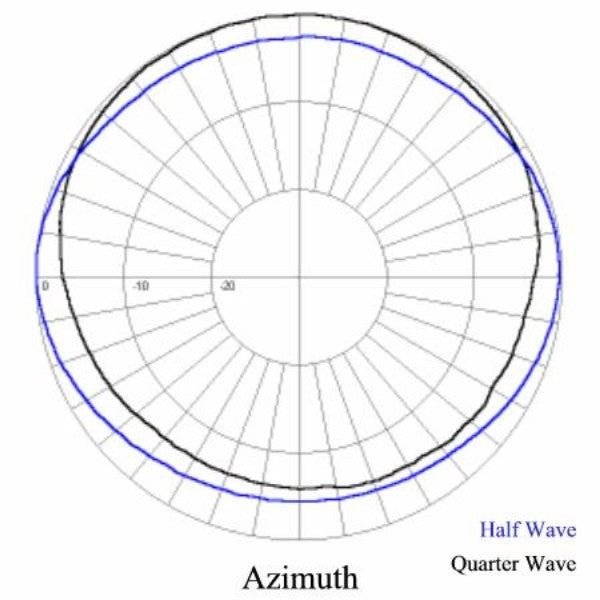

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 74
base pipe diameter 2.38
base pipe material aluminum
base pipe mounting length 60
depth (in) 3.5
length height (in) 240
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 246x24x6
Width (in) 23
Environmental
bending moment 100 mph no ice 933
lateral thrust 100 mph no ice 149
rated wind velocity no ice 120
temperature range (°C) -40 to 60
