4 dipole, 8.5 dBd, offset, top mount, HD, 118-138 MHz
4 dipole, 8.5 dBd, offset, top mount, HD, 118-138 MHz

SD214-HF1P4SNM(D00B)

4 dipole, 8.5 dBd, offset, top mount, HD, 118-138 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Covers the 118-138 MHz frequency range
• 8.5 dBd gain with offset pattern
• Heavy duty with 300W power handling
• Top mount
Electrical
average input power max (W) 300
connector N-Male
electrical tilt available 0,2,4,6, or 8 degrees
frequency range (MHz) 118 to 138
front to back ratio typ 9
gain nominal (dBd) 8.5
horizontal beamwidth typ 180
impedance (Ω) 50
lightning protection DC ground

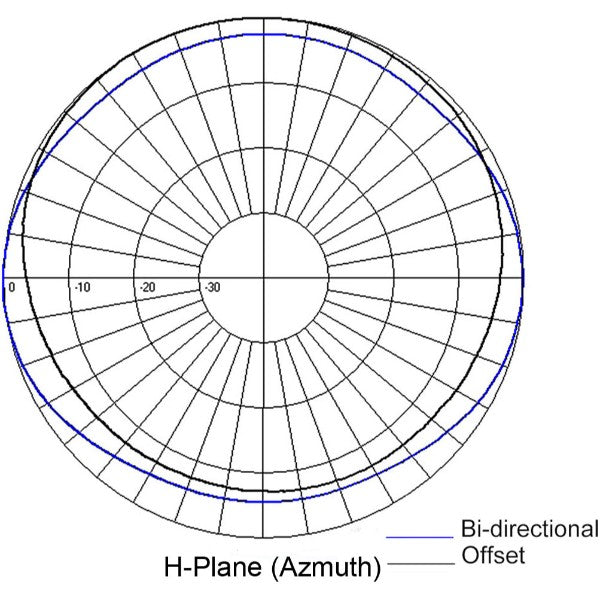

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 175
base pipe diameter 4
base pipe material aluminum
base pipe mounting length 46
depth (in) 6
length height (in) 306
mounting configurations top mount
mounting information Upright
radiating element material aluminum
shipping dimensions (in) 325x30x6
Width (in) 30
Environmental
bending moment 100 mph no ice 2593
lateral thrust 100 mph no ice 290
rated wind velocity no ice 135
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.5
