4 dipole, 8.5 dBd, offset, top mount, HD, 138-174 MHz
4 dipole, 8.5 dBd, offset, top mount, HD, 138-174 MHz

SD214-HF2P4SNM(D00B)

4 dipole, 8.5 dBd, offset, top mount, HD, 138-174 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Covers the 138-174 MHz frequency range
• 8.5 dBd gain with offset pattern
• Heavy duty with 300W power handling
• Top mount
Electrical
average input power max (W) 300
connector N-Male
electrical tilt available 0,2,4,6, or 8 degrees
frequency range (MHz) 138 to 174
front to back ratio typ 9
gain nominal (dBd) 8.5
horizontal beamwidth typ 180
impedance (Ω) 50
lightning protection DC ground

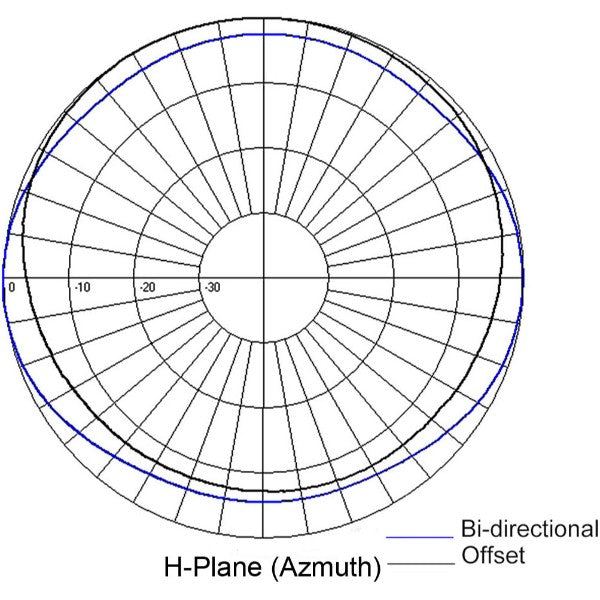

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 161
base pipe diameter 4
base pipe material aluminum
base pipe mounting length 48
depth (in) 5
length height (in) 222
mounting configurations top mount
radiating element material aluminum
shipping dimensions (in) 228x30x6
Width (in) 25.75
Environmental
bending moment 100 mph no ice 1051
lateral thrust 100 mph no ice 204
rated wind velocity no ice 205
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.3
