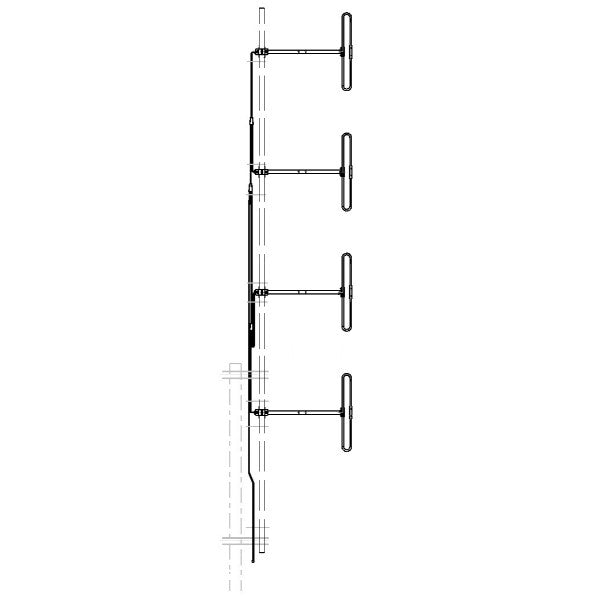

4 dipole, 8/8.5 dBd, field adjustable, black anodized, 138-174 MHz
4 dipole, 8/8.5 dBd, field adjustable, black anodized, 138-174 MHz

SD214-SF2PASNM(D00-LMABK)

4 dipole, 8/8.5 dBd, field adjustable, black anodized, 138-174 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Field adjustable to allow for either Bi-directional or Offset pattern
• 8.0 dBd in bi-directional configuration, 8.5 dBd gain in offset configuration
• 300 watt power handling, black anodized
• Mast not included
Electrical
average input power max (W) 300
connector N-Male
frequency range (MHz) 138 to 174
gain nominal (dBd) 8.5
horizontal beamwidth typ 210
impedance (Ω) 50
lightning protection DC ground

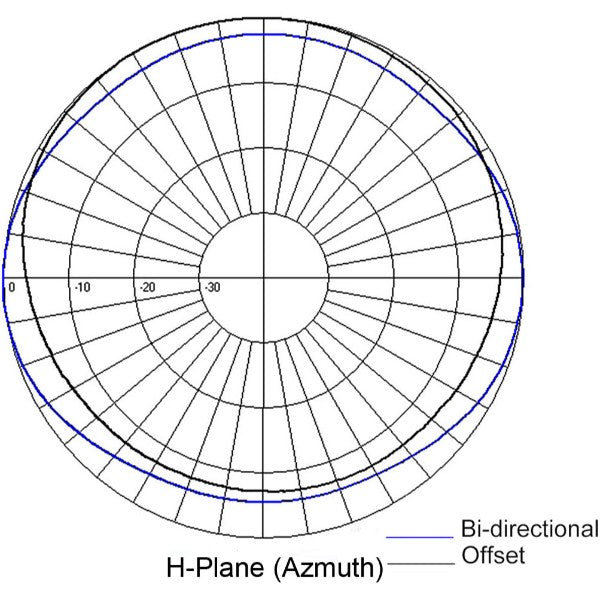

pattern Offset or Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 42
base pipe material aluminum
depth (in) 4
finish anodize (black)
length height (in) 194
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 50x15x10
Width (in) 45
Environmental
bending moment 100 mph no ice 42
lateral thrust 100 mph no ice 31
rated wind velocity no ice 135
temperature range (°C) -40 to 60
