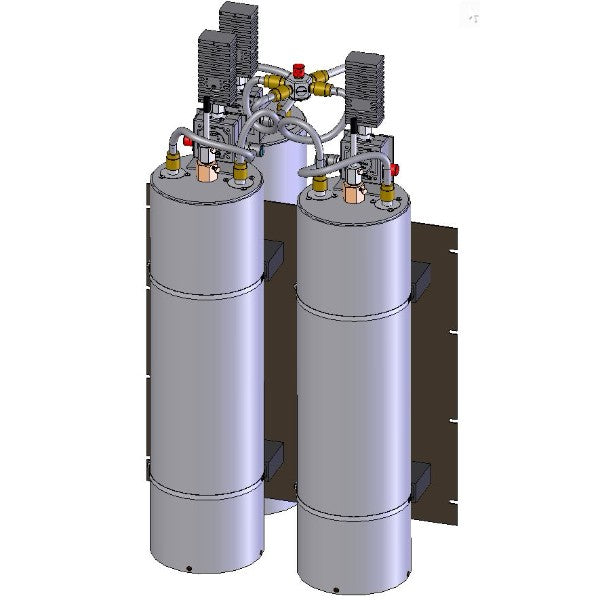

Combiner, 3 CH, 7" cavities, single stage isolator, 132-150 MHz
Combiner, 3 CH, 7" cavities, single stage isolator, 132-150 MHz

TJ2113-2

Combiner, 3 CH, 7" cavities, single stage isolator, 132-150 MHz

正常价格 $0.00
/

只有 0 件商品有库存!
• Three channel cavity-ferrite combiner in compact configuration
• Single low-loss isolator
• High Q bandpass cavity filters
Electrical
frequency range (MHz) 132 to 150
impedance (Ω) 50
input connectors N-Female
isolation antenna to tx 25
isolation antenna to tx (dB) 25
isolation tx to tx 35
isolation tx to tx (dB) 35
number of channels 3
output connectors N-Female
output vswr 2:01
power (per channel) (W) 125
power per channel 125
Mechanical
actual shipping weight (lbs) 40
cavity height 26
cavity height (in) 26
coupling loops material copper
depth (in) 15
end plates material aluminum
finish chemical conversion
length height (in) 34.3
mounting configurations 19 inch rack
shipping dimensions (in) 22x19x38
tuning rod material invar
Width (in) 19
Environmental
temperature range (°C) -30 to 60
