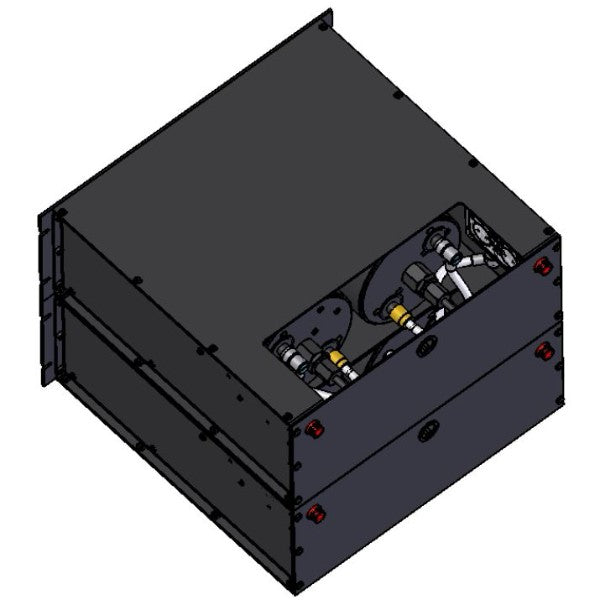

Combiner, 4 CH, 7" cavities, 806-960 MHz
Combiner, 4 CH, 7" cavities, 806-960 MHz

TJ4234

Combiner, 4 CH, 7" cavities, 806-960 MHz

正常价格 $0.00
/

库存只有 0 件商品!
• Allows for minimum Tx-Tx spacings of 250 KHz
• Expandable for more channels
• High Q bandpass cavity filters with dual low-loss isolators
• Enclosed cabinet
Electrical
frequency range (MHz) 806 to 960
impedance (Ω) 50
input connectors N-Female
isolation antenna to tx 60
isolation antenna to tx (dB) 60
isolation tx to tx 70
isolation tx to tx (dB) 70
number of channels 4
output connectors N-Female
output vswr 2:01
power (per channel) (W) 125
power per channel 125
Mechanical
actual shipping weight (lbs) 70
depth (in) 18.5
length height (in) 14
mounting configurations 19 inch rack
shipping dimensions (in) 23x23x18
Width (in) 19
Environmental
temperature range (°C) -30 to 60
