Ground plane omni, 0 dBd, 410-430 MHz
Ground plane omni, 0 dBd, 410-430 MHz

SG301-SF9SNM

Ground plane omni, 0 dBd, 410-430 MHz

正常价格 $0.00
/

库存只有 0 件商品!

• Rugged construction, light weight and easy to install

Electrical
average input power max (W) 100
bandwidth (MHz) 20
connector N-Male
frequency range (MHz) 410 to 430
impedance (Ω) 50
lightning protection DC ground

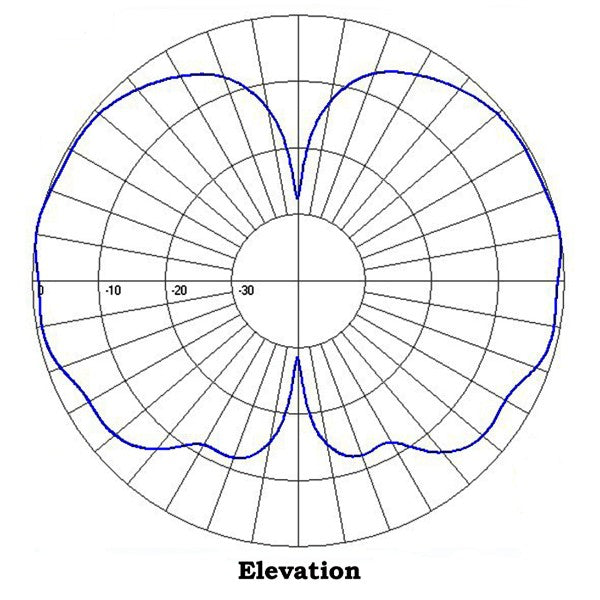

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 5
base pipe diameter 0.75
base pipe material aluminum
base pipe mounting length 8
depth (in) 16
length height (in) 23

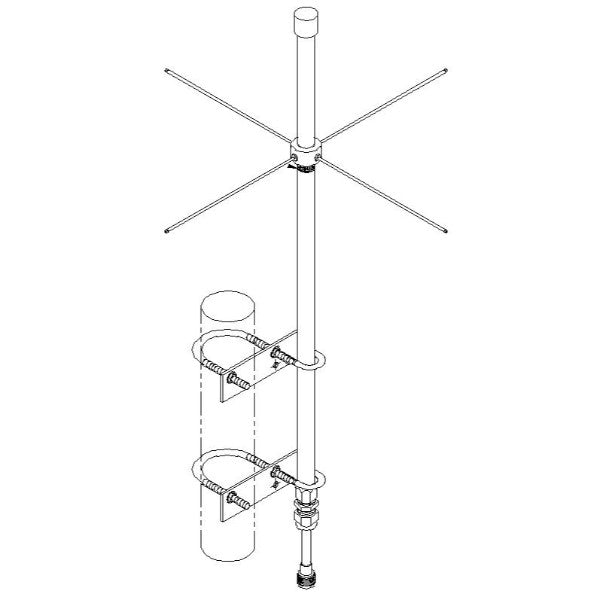

mounting configurations upright
mounting hardware included Clamp135
radiating element material aluminum
radome material PVC
shipping dimensions (in) 3x5x25
Width (in) 16
Environmental
bending moment 100 mph no ice 0.52
lateral thrust 100 mph no ice 3.43
rated wind velocity no ice 100
temperature range (°C) -40 to 60
