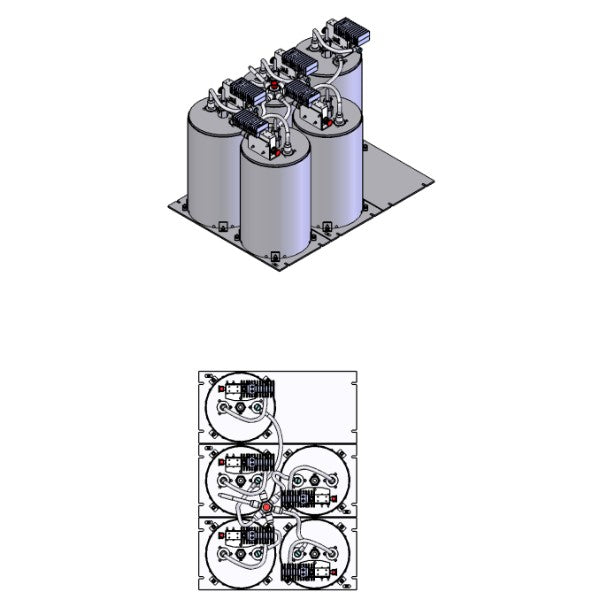

Combiner, 8.5" cavities, 430-470 MHz
Combiner, 8.5" cavities, 430-470 MHz

TN3215-R-4

Combiner, 8.5" cavities, 430-470 MHz

Regular price $0.00
/

Only 0 items in stock!
• Minimum Tx-Tx separation of 0.1 MHz
• Low loss broad band dual stage isolators
• Uses high Q 1/4 wave bandpass cavity filters that are horizontally mounted
• Expandable for more channels
Electrical
cavity electrical length 04-Jan
frequency range (MHz) 430 to 470
impedance (Ω) 50
input connectors N-Female
isolation antenna to tx 50
isolation antenna to tx (dB) 50
isolation tx to tx 60
isolation tx to tx (dB) 60
number of channels 5
output connectors N-Female
output vswr 2:01
Mechanical
depth (in) 21.5
finish Black
length height (in) 26.25
mounting configurations 19 inch rack
shipping dimensions (in) 17x22x22
Width (in) 19
Environmental
temperature range (°C) -30 to 60
