Cavity filter, reject, high Q, one 7" cavity, 406-512 MHz
Cavity filter, reject, high Q, one 7" cavity, 406-512 MHz

FR30107-3

Cavity filter, reject, high Q, one 7" cavity, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!

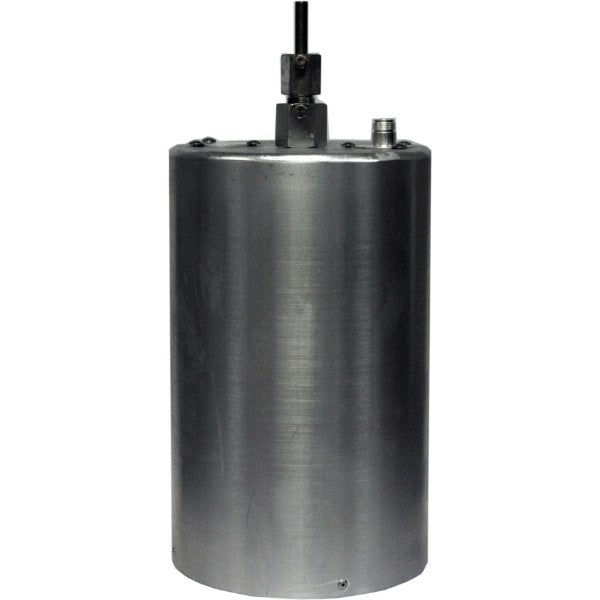

• 7 inch diameter aluminum cylinder with brass and copper coaxial inner conductor
• Silver plating and chromate conversion coating limit corrosion and enhance performance
• Temperature compensated for extremely low frequency drift
Electrical
average input power max (W) 350
frequency range (MHz) 406 to 512
impedance (Ω) 50
input connectors N-Female
output connectors N-Female
Mechanical
actual shipping weight (lbs) 10
depth (in) 7
length height (in) 17.5
shipping dimensions (in) 21x9x9
Width (in) 7
Environmental
temperature range (°C) -40 to 60
