Yagi Ant, 5.5 dBd, center mount, 143-149 MHz
Yagi Ant, 5.5 dBd, center mount, 143-149 MHz

SY203-SF2SNM(C)

Yagi Ant, 5.5 dBd, center mount, 143-149 MHz

Precio regular $0.00
/

¡Solo 0 artículos en stock!

• Rugged 3-element yagi, 5.5 dBd gain Designed for medium gain applications Center-boom mounting

Electrical
average input power max (W) 200
bandwidth (MHz) 6
connector N-Male
frequency range (MHz) 143 to 149
front to back ratio typ 12
gain nominal (dBd) 5.5
horizontal beamwidth typ 87
impedance (Ω) 50
lightning protection DC ground

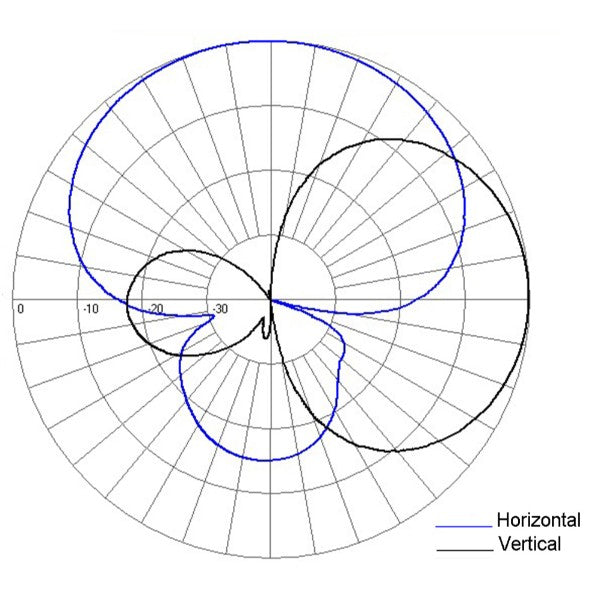

pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 15
depth (in) 6.5
length height (in) 40.1
mounting hardware included Clamp001
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 47x6x18
Width (in) 42
Environmental
bending moment 100 mph no ice 8.1
lateral thrust 100 mph no ice 29.5
rated wind velocity no ice 150
