Yagi Ant, 5.5 dBd, end mount, 152-159 MHz
Yagi Ant, 5.5 dBd, end mount, 152-159 MHz

SY203-SF4SNM(E)

Yagi Ant, 5.5 dBd, end mount, 152-159 MHz

Precio regular $0.00
/

¡Solo 0 artículos en stock!
• Rugged 3 element yagi, 5.5 dBd gain
• Designed for medium gain applications
• Extended boom for end mounting
Electrical
average input power max (W) 200
bandwidth (MHz) 7
connector N-Male
frequency range (MHz) 152 to 159
front to back ratio 12 to 17
gain nominal (dBd) 5.5
horizontal beamwidth typ 87
impedance (Ω) 50
lightning protection DC ground

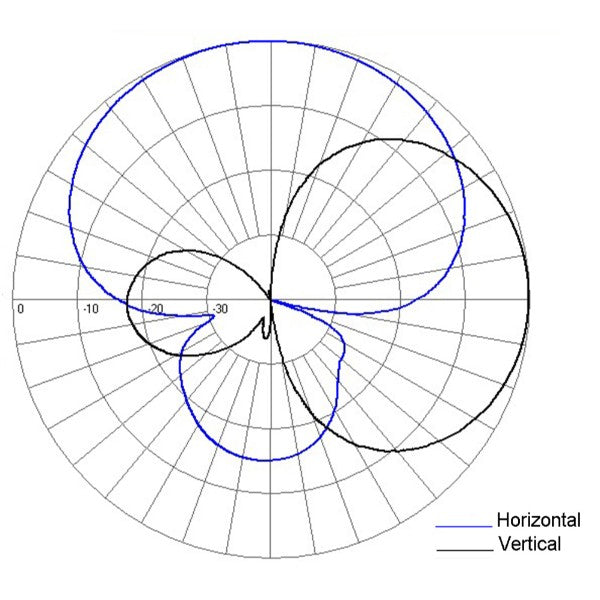

pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 10
boom diameter 1.5
depth (in) 6.5
length height (in) 75.3
mounting hardware included Clamp001
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 85x60x6
Width (in) 42
Environmental
bending moment 100 mph no ice 126
lateral thrust 100 mph no ice 38.7
rated wind velocity no ice 135
temperature range (°C) -40 to 60
