2 dipole, 4.5 dBd, bi-directional, low PIM, 190-225 MHz
2 dipole, 4.5 dBd, bi-directional, low PIM, 190-225 MHz

SD212-SF3P2LDF(D00)

2 dipole, 4.5 dBd, bi-directional, low PIM, 190-225 MHz

Precio regular $0.00
/

¡Solo 0 artículos en stock!
• 2-bay dipole antenna that covers the 190-225 MHz band
• 4.5 dBd gain with bi-directional pattern
• 250W power handling
• Can be top or side mounted (Universal Mount)
Electrical
average input power max (W) 250
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 190 to 225
gain nominal (dBd) 4.5
impedance (Ω) 50
lightning protection DC ground

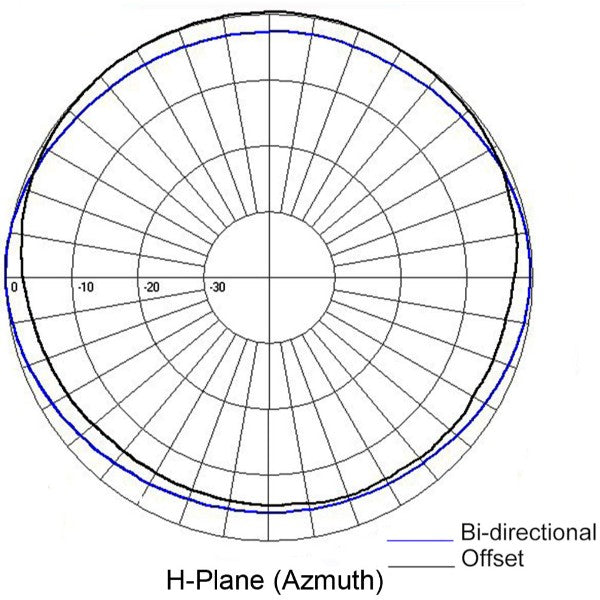

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 41.4
base pipe diameter 1.9
base pipe material aluminum
depth (in) 3
length height (in) 120
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 124x36x4
Width (in) 30.3
Environmental
bending moment 100 mph no ice 249
lateral thrust 100 mph no ice 67.5
rated wind velocity no ice 155
temperature range (°C) -40 to 60
