2 dipole, 5.0 dBd, low PIM, offset, HD, 138-174 MHz
2 dipole, 5.0 dBd, low PIM, offset, HD, 138-174 MHz

SD212-HF2P4LDF(D00)

2 dipole, 5.0 dBd, low PIM, offset, HD, 138-174 MHz

Precio regular $0.00
/

¡Solo 0 artículos en stock!
• 2-bay dipole antenna that covers the 138-174 MHz band
• 5 dBd gain with offset pattern
• 300W power handling
• Can be top or side mounted (Universal Mount)
Electrical
average input power max (W) 300
bandwidth (MHz) 36
connector 7/16 DIN-Female
frequency range (MHz) 138 to 174
gain nominal (dBd) 5
horizontal beamwidth typ 210
impedance (Ω) 50
lightning protection DC ground

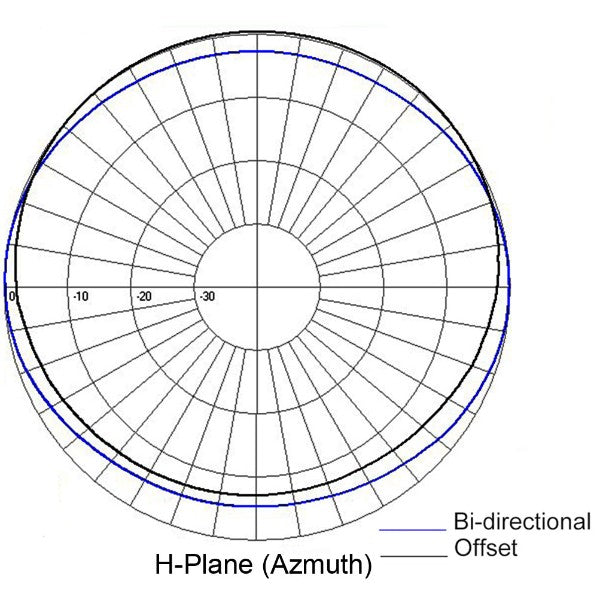

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 65
base pipe diameter 2.38
base pipe material aluminum
depth (in) 4.75
length height (in) 120
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 132x30x6
Width (in) 24.62
Environmental
bending moment 100 mph no ice 235
lateral thrust 100 mph no ice 82
rated wind velocity no ice 190
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.4
