| Electrical | |
|---|---|
| average input power max (W) | 200 |
| connector | N-Male |
| electrical tilt available | 0,2,4,6,8,or 10 degrees |
| frequency range (MHz) | 370 to 460 |
| gain nominal (dBd) | 8 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

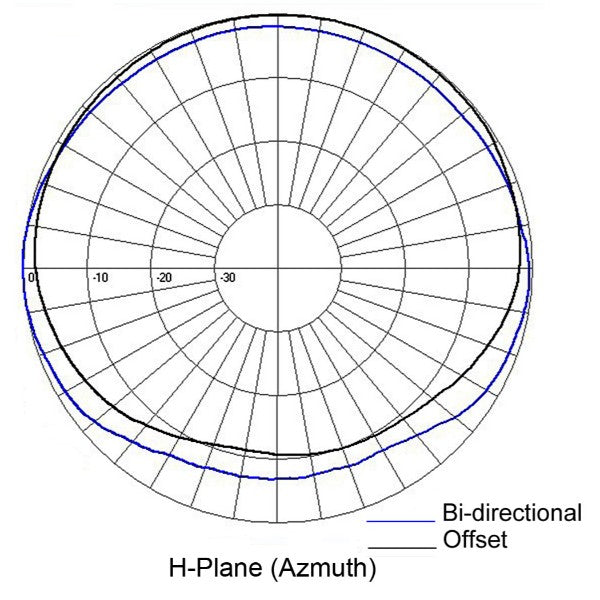

| pattern | Bi- directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 41 |
| base pipe diameter | 2.38 |
| base pipe material | aluminum |
| base pipe mounting length | 36 |
| depth (in) | 3.5 |
| finish | anodize (black) |
| length height (in) | 120 |
| mounting configurations | top mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 124x4x20 |
| Width (in) | 18 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 281 |
| lateral thrust 100 mph no ice | 84 |
| rated wind velocity no ice | 185 |
| temperature range (°C) | -40 to 70 |
| tip deflection 100 mph no ice | 0.6 |
