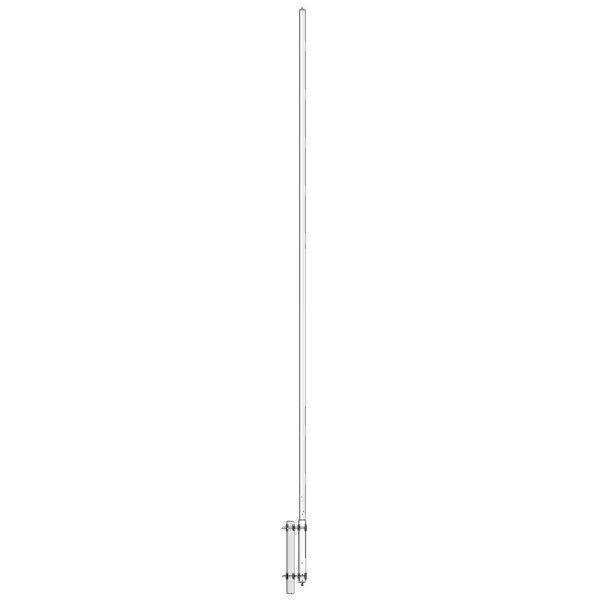

Aurora collinear omni antenna, 10 dBd, 380-400 MHz (Successor of SC331 Series)
Aurora collinear omni antenna, 10 dBd, 380-400 MHz (Successor of SC331 Series)

SC34A-ST1SNF(DXX)

Aurora collinear omni antenna, 10 dBd, 380-400 MHz (Successor of SC331 Series)

Precio regular $0.00
/

¡Solo 0 artículos en stock!
• Patent-pending Aurora design for outstanding performance
• 20 MHz fully operational bandwidth with highly consistent RF performance
• High gain, omni-directional antenna
• Rugged design and UV protected radome for harsh environment design and UV protected radome for harsh environment
Electrical
average input power max (W) 500
bandwidth (MHz) 20
connector N-Female
electrical tilt available 0, 3, 6 degrees
frequency range (MHz) 380 to 400
gain nominal (dBd) 10
impedance (Ω) 50
lightning protection DC ground
number of ports 1
pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 78
base pipe diameter 2.88
base pipe mounting length 18
depth (in) 2.88
length height (in) 260
shipping dimensions (in) 280x6x6
Width (in) 2.88
Environmental
bending moment 100 mph no ice 1026
lateral thrust 100 mph no ice 112
rated wind velocity no ice 125
temperature range (°C) -40 to +60
tip deflection 100 mph no ice 8.3
