2 dipole, 4.5 dBd, low PIM, bi-directional, HD, 138-174 MHz
2 dipole, 4.5 dBd, low PIM, bi-directional, HD, 138-174 MHz

SD212-HF2P2LDF(D00)

2 dipole, 4.5 dBd, low PIM, bi-directional, HD, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• -150 dBc PIM rating, covers 138-174 MHz
• 4.5 dBd gain with bi-directional pattern
• 300 Watts power handling
• Can be top or side mounted (Universal mount)
Electrical
average input power max (W) 300
bandwidth (MHz) 36
connector 7/16 DIN-Female
frequency range (MHz) 138 to 174
gain nominal (dBd) 4.5
impedance (Ω) 50
lightning protection DC ground

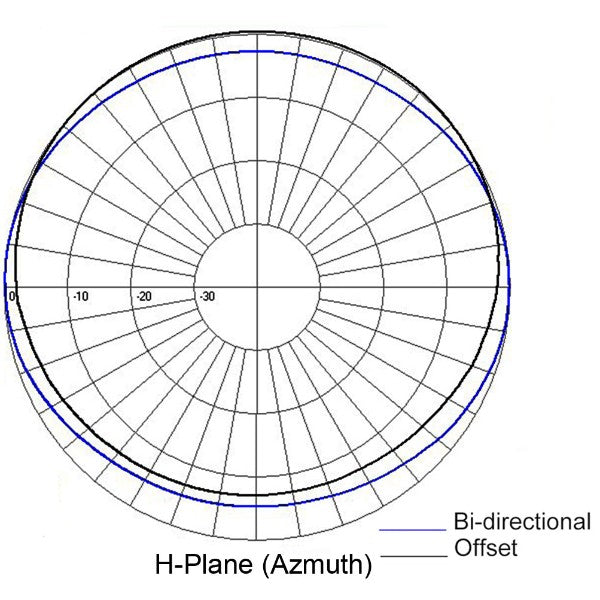

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 70
base pipe diameter 2.38
base pipe material aluminum
depth (in) 4.75
length height (in) 120
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 132x48x6
Width (in) 42.62
Environmental
bending moment 100 mph no ice 340
lateral thrust 100 mph no ice 101
rated wind velocity no ice 185
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.4
