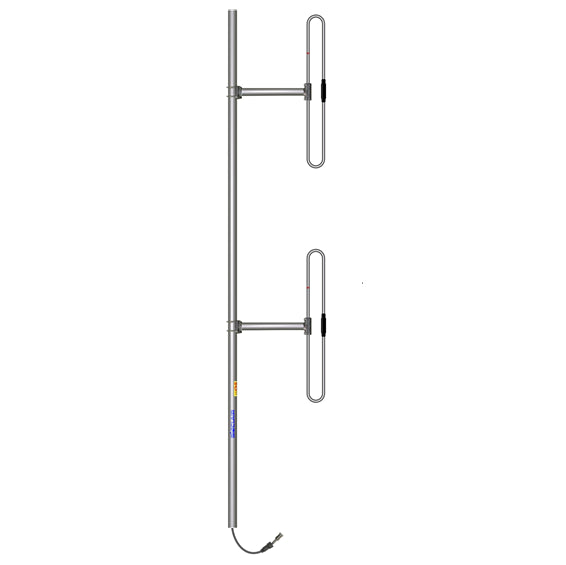

2 dipole, 5.0 dBd, bi-directional, weather seal boot, 138-174 MHz
2 dipole, 5.0 dBd, bi-directional, weather seal boot, 138-174 MHz

SD212-SF2P2SNM(DXX-BT)

2 dipole, 5.0 dBd, bi-directional, weather seal boot, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!

• Covers the entire 138-174 MHz frequency range 5.0 dBd gain with bi-directional pattern 300 Watt power handling; can be top or side mounted (Universal mount) Weather seal boot equipped for ease of connector waterproofing in the field

Electrical
average input power max (W) 300
bandwidth (MHz) 36
connector N-Male
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 138 to 174
gain nominal (dBi) 5
impedance (Ω) 50
lightning protection DC ground

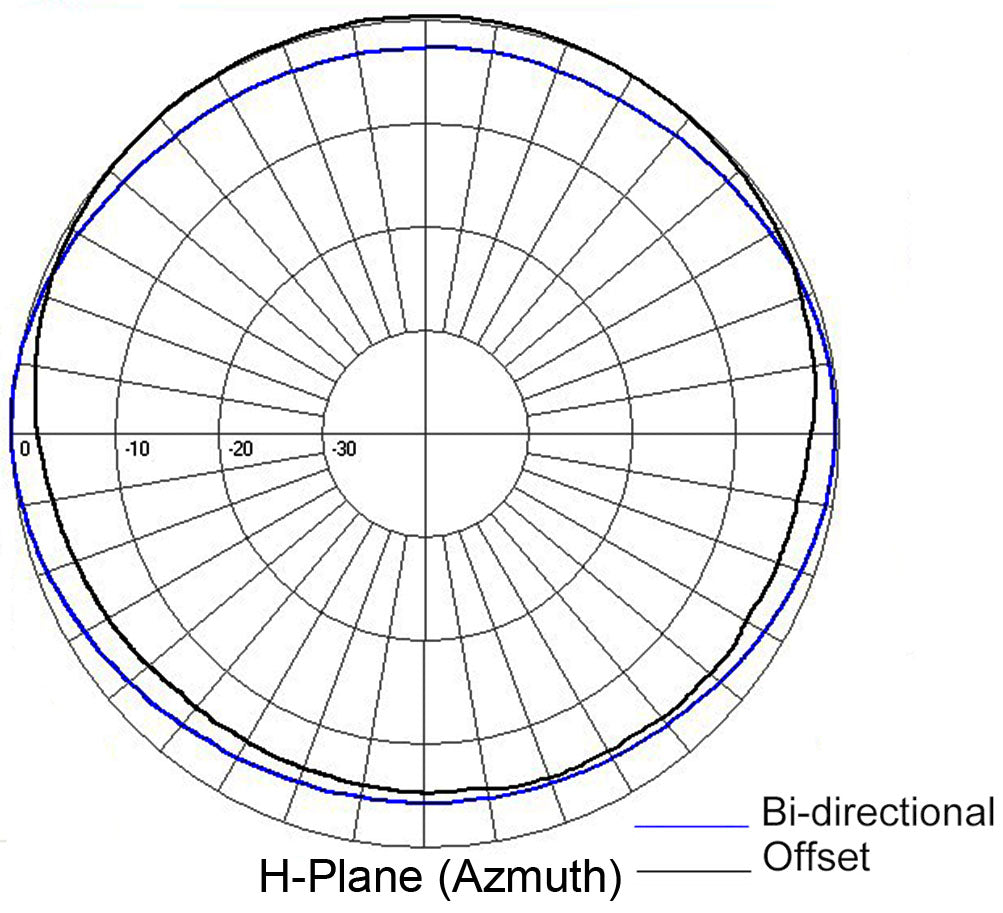

pattern Bi- directional
polarization vertical
Mechanical
actual shipping weight (lbs) 45
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 36
depth (in) 3
length height (in) 120
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 124x48x6
Width (in) 40
Environmental
bending moment 100 mph no ice 247
connector weather seal boot Times IPB-400 NM
lateral thrust 100 mph no ice 77
rated wind velocity no ice 140
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 1.02
