2 dipole, 5.5 dBd, dual port, 40 dB isolation, offset, 190-225 MHz
2 dipole, 5.5 dBd, dual port, 40 dB isolation, offset, 190-225 MHz

SD212D-SF3P4SNM(I40)

2 dipole, 5.5 dBd, dual port, 40 dB isolation, offset, 190-225 MHz

Regular price $0.00
/

Only 0 items in stock!
• 5.5 dB gain with offset pattern
• 190-225 MHz at a VSWR of 1.5:1 or better
• Dual port with 40 dB port-to-port isolation
Electrical
average input power max (W) 300
bandwidth (MHz) 35
connector N-Male
frequency range (MHz) 190 to 225
front to back ratio typ 6
gain nominal (dBi) 5.5
horizontal beamwidth typ 210
impedance (Ω) 50
lightning protection DC ground

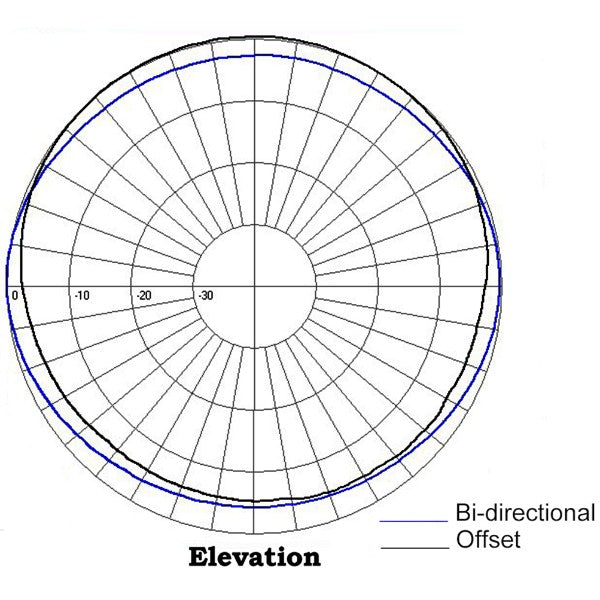

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 78
base pipe diameter 2.38
base pipe material aluminum
base pipe mounting length 60
depth (in) 3
length height (in) 240
mounting configurations Universal Mount
radiating element material aluminum
Width (in) 18.5
Environmental
bending moment 100 mph no ice 891
lateral thrust 100 mph no ice 136
rated wind velocity no ice 125
survival wind velocity no ice 135
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 3.1
