2 dipole 5.5 dBd, offset, N-Male, HD, 300-380 MHz
2 dipole 5.5 dBd, offset, N-Male, HD, 300-380 MHz

SD312-HF5P4SNM(D00)

2 dipole 5.5 dBd, offset, N-Male, HD, 300-380 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers 300-380 MHz frequency range
• 5.5 dBd gain with offset pattern
• Heavy duty with 150W power handling
• Can be bottom or side mounted (Universal mount)
Electrical
average input power max 150
bandwidth 80
connector N-Male
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range 300 to 380
gain nominal 5.5
horizontal beamwidth typ 224
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

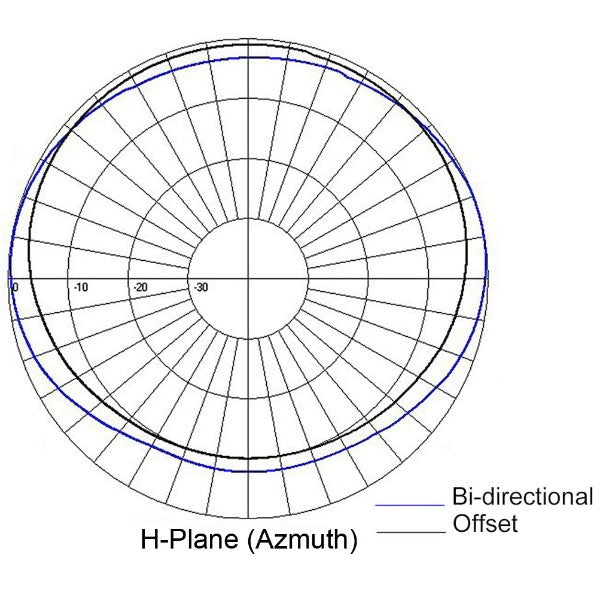

pattern Offset
polarization vertical
vertical beamwidth typ 36
Mechanical
actual shipping weight 20
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth 3.5
length height 80
mounting configurations Universal Mount
mounting hardware optional Clamp005, Clamp015, Clamp130, or Clamp125U
radiating element material aluminum
shipping dimensions 85x20x5
width 12.25
Environmental
bending moment 100 mph no ice 81.9
lateral thrust 100 mph no ice 38
rated wind velocity no ice 245
temperature range -40 to 60
tip deflection 100 mph no ice 0.2
