2 dipole 5 dBd, bi-directional, N-Male, HD, 370-460 MHz
2 dipole 5 dBd, bi-directional, N-Male, HD, 370-460 MHz

SD312-HF1P2SNM(D00)

2 dipole 5 dBd, bi-directional, N-Male, HD, 370-460 MHz

Regular price $0.00
/

Only 0 items in stock!
Covers the entire 370-460 MHz frequency range 5 dBd gain with bi-directional pattern Heavy duty with 150 W power handling Can be bottom or side mounted (Universal mount)
Mechanical
actual shipping weight 21
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth 3.5
length height 83.13
mounting configurations universal mount
mounting hardware optional clamp005, clamp015, clamp130, or clamp125u
radiating element material aluminum
shipping dimensions 83x50x20
width 18.9
Electrical
average input power max 150
bandwidth 90
connector n-male
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range 370 to 460
gain nominal 5
impedance 50
input vswr max 1.5 : 1
lightning protection dc ground

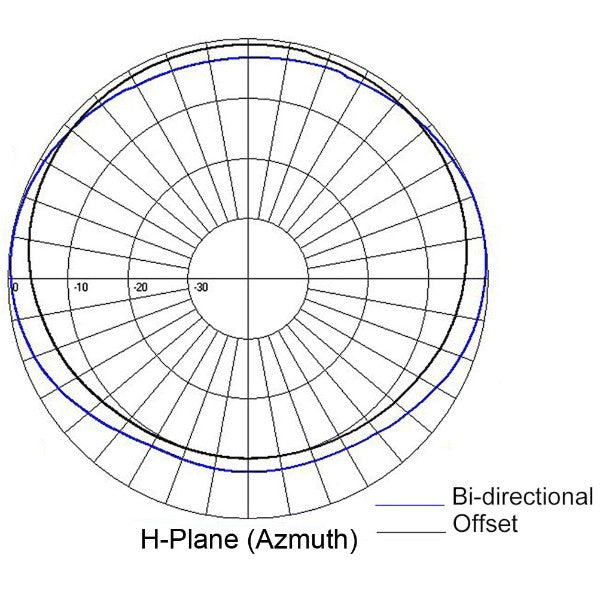

pattern bi-directional
polarization vertical
vertical beamwidth typ 34
