| Electrical | |
|---|---|
| average input power max (W) | 300 |
| connector | N-Male |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 5 for bi-directional and 5.5 for offset |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

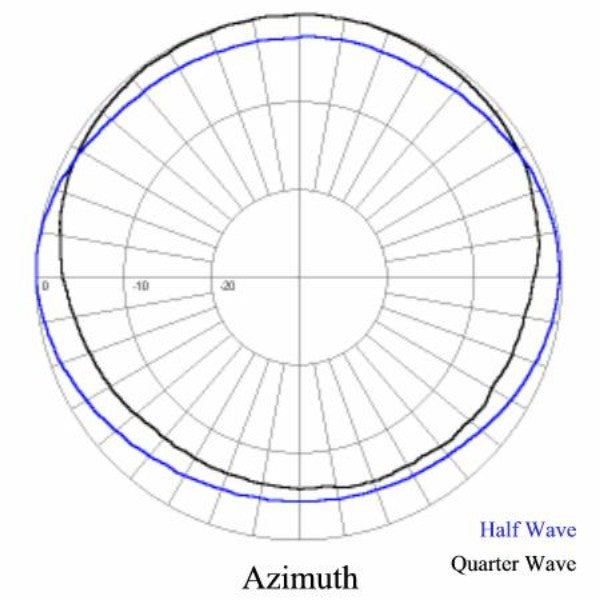

| pattern | Offset or Bi-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 93 |
| base pipe diameter | 2.38 |
| base pipe material | aluminum |
| base pipe mounting length | 72 |
| depth (in) | 3.5 |
| length height (in) | 240 |
| mounting configurations | Universal Mount |
| radiating element material | aluminum |
| Width (in) | 42.7 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 1011 |
| lateral thrust 100 mph no ice | 172 |
| rated wind velocity no ice | 110 |
| temperature range (°C) | -40 to 60 |
