4 dipole, 7 dBd, bi-directional, low PIM, HD, 370-430 MHz
4 dipole, 7 dBd, bi-directional, low PIM, HD, 370-430 MHz

SD314-HF1P2LDF(D00)

4 dipole, 7 dBd, bi-directional, low PIM, HD, 370-430 MHz

Regular price $0.00
/

Only 0 items in stock!
Industry-leading -150 dBc PIM rating 7 dBd gain with bi-directional pattern Heavy duty wind ratings, 200 W power handling Can be top or side mounted (Universal mount)
Mechanical
actual shipping weight 43
base pipe diameter 2.38
base pipe material aluminum
base pipe mounting length 26
depth 3.5
length height 120
mounting configurations universal mount
mounting hardware optional clamp005, clamp015, clamp130, or clamp125u
radiating element material aluminum
shipping dimensions 124x4x20
width 18.5
Electrical
average input power max 200
bandwidth 60
connector 7/16 din-female
electrical tilt available 0,2,4,6,8,or 10 degrees
frequency range 370 to 430
gain nominal 7
impedance 50
input vswr max 1.5 : 1
lightning protection dc ground

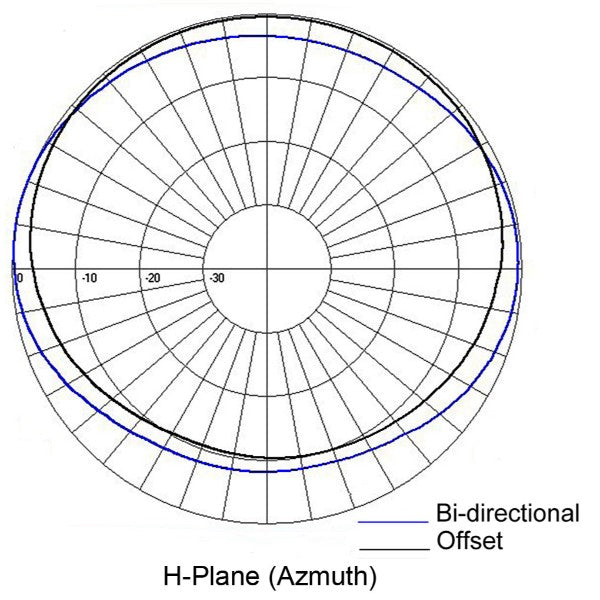

pattern bi-directional
polarization vertical
vertical beamwidth typ 15
