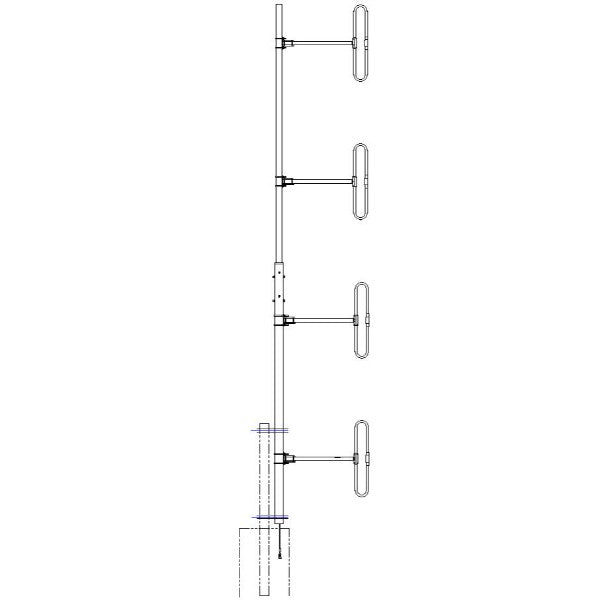

4 dipole, 7 dBd, low PIM, bi-directional, HD, 138-174 MHz
4 dipole, 7 dBd, low PIM, bi-directional, HD, 138-174 MHz

SD214-HF2P2LDF(D00B)

4 dipole, 7 dBd, low PIM, bi-directional, HD, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
-150dBc PIM rating, covering the entire 138-174 MHz frequency range 7.0 dBd gain with bi-directional pattern Heavy duty with 300W power handling Top mount
Performance Features
low pim certified Yes
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole Yes
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
actual shipping weight 159
base pipe diameter 4
base pipe material aluminum
base pipe mounting length 40
depth 5.8
length height 240
mounting configurations top mount
mounting hardware optional Clamp006C
radiating element material aluminum
shipping dimensions 246x48x6
width 43.7
Electrical
average input power max 300
bandwidth 36
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6, or 8 degrees
frequency range 138 to 174
gain nominal 7
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

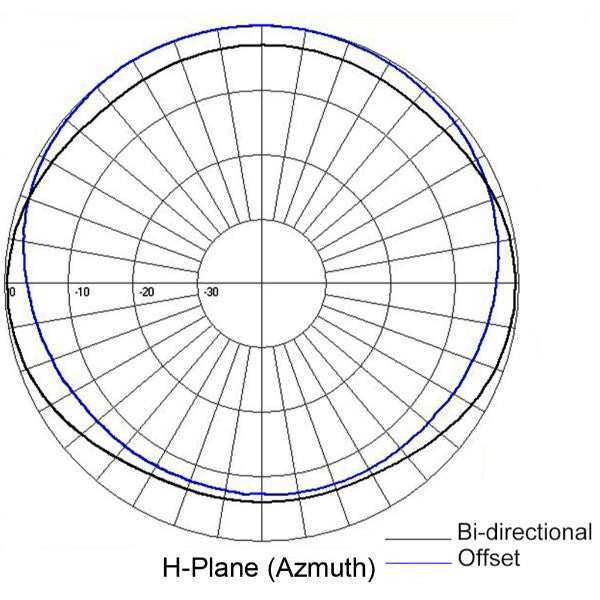

pattern Bi-directional
polarization vertical
vertical beamwidth typ 18
