4 dipole, 8.5 dBd, offset, N-Male, 138-174 MHz
4 dipole, 8.5 dBd, offset, N-Male, 138-174 MHz

SD214-SF2P4SNM(D00)

4 dipole, 8.5 dBd, offset, N-Male, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers the entire 138-174 MHz frequency range
• 8.5 dBd gain with offset pattern
• 300 Watts power handling
• Can be top or side mounted (Universal Mount)
Electrical
average input power max 300
connector N-Male
electrical tilt available 0,2,4,6, or 8 degrees
frequency range 138 to 174
gain nominal 8.5

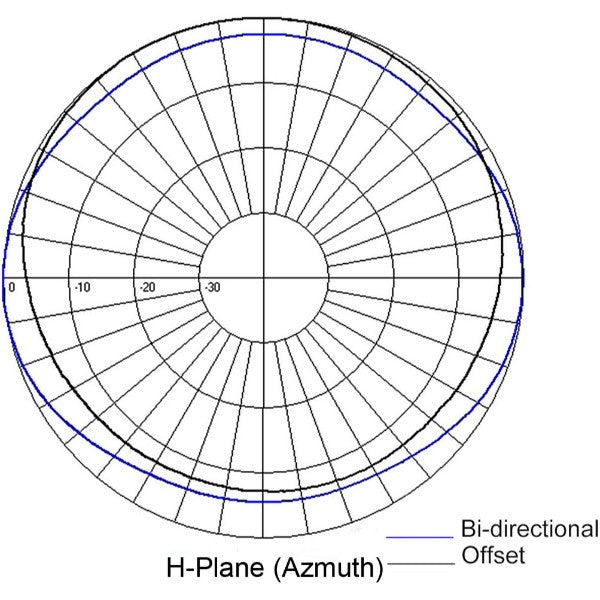

horizontal beamwidth typ 210
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground
pattern Offset
polarization vertical
vertical beamwidth typ 17
Mechanical
actual shipping weight 83
base pipe diameter 2.38
base pipe material aluminum
depth 4
length height 240
mounting configurations Universal Mount
mounting hardware optional Clamp005, Clamp015, or Clamp130
radiating element material aluminum
shipping dimensions 247x28x6
width 26.5
Environmental
bending moment 100 mph no ice 701
lateral thrust 100 mph no ice 122
rated wind velocity no ice 135
temperature range -40 to 60
