4 dipole, 8 dBd, bi-directional, N-Male, HD, 406-512 MHz
4 dipole, 8 dBd, bi-directional, N-Male, HD, 406-512 MHz

SD314-HF2P2SNM(D00)

4 dipole, 8 dBd, bi-directional, N-Male, HD, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers 406-512 MHz frequency range
• 8 dBd with bi-directional pattern
• 200 Watt power handling
• Can be top or side mounted (Universal mount)
Electrical
average input power max (W) 200
connector N-Male
electrical tilt available 0,2,4,6,8,or 10 degrees
frequency range (MHz) 406 to 512
gain nominal (dBd) 8
impedance (Ω) 50
lightning protection DC ground

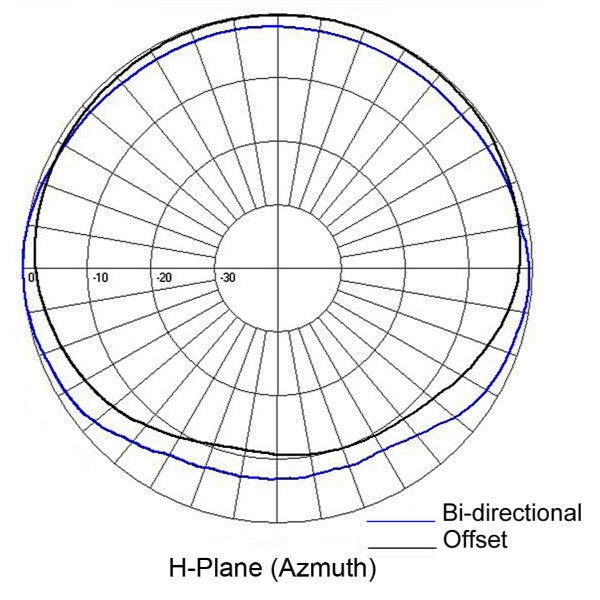

pattern Bi- directional
polarization vertical
Mechanical
actual shipping weight (lbs) 35
base pipe diameter 2.38
base pipe material aluminum
base pipe mounting length 36
depth (in) 3.5
length height (in) 114
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 118x4x20
Width (in) 16
Environmental
bending moment 100 mph no ice 153
lateral thrust 100 mph no ice 77
rated wind velocity no ice 185
temperature range (°C) -40 to 70
